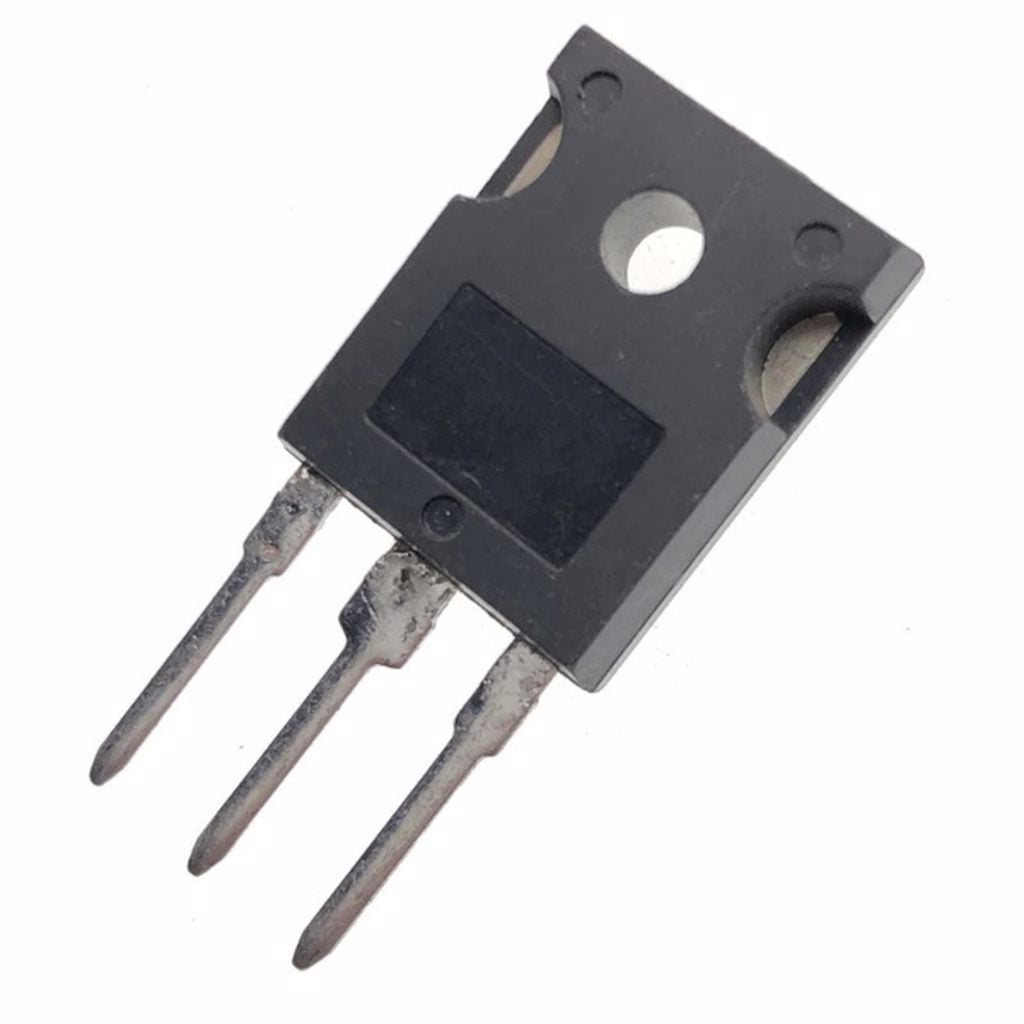

FQA28N15 TO-247 33A 150V 227W 90mΩ N-CHANNEL MOSFET
0 - Yorum
Kategori
Kalan Adet
90 Adet
Fiyat
3,25 USD + KDV
*12,51 TL den başlayan taksitlerle!
134,59 TL
FQA28N15 TO-247 33A 150V 227W 90mΩ N-CHANNEL MOSFET
FQA28N15 MOSFET
Type Designator: FQA28N15
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 227 W
Maximum Drain-Source Voltage |Vds|: 150 V
Maximum Gate-Source Voltage |Vgs|: 25 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 33 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 40 nC
Maximum Drain-Source On-State Resistance (Rds): 0.09 Ohm
Package: TO3PN
