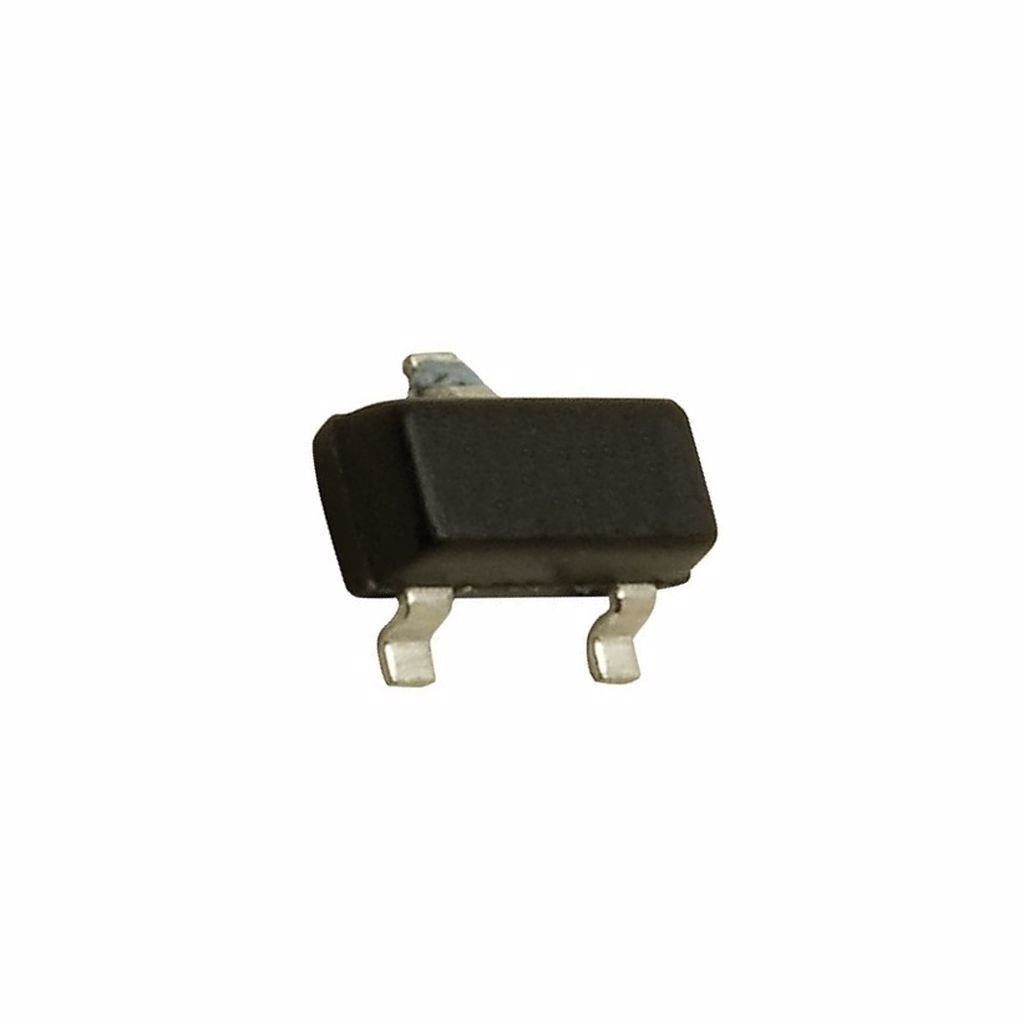

FMMT491 SOT-23 1A 80V 0.5W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
294 Adet
Fiyat
0,25 USD + KDV
*0,96 TL den başlayan taksitlerle!
10,35 TL
FMMT491 SOT-23 41A 80V 0.5W NPN TRANSISTOR
FMMT491
Type Designator: FMMT491
SMD Transistor Code: 491
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.5 W
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector-Emitter Voltage |Vce|: 60 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 150 MHz
Collector Capacitance (Cc): 10 pF
Forward Current Transfer Ratio (hFE), MIN: 80
Package: TO236
