FMH11N90E TO-3P 11A 900V 285W 1Ω N-CHANNEL MOSFET
0 - Yorum
Kategori
Kalan Adet
301 Adet
Fiyat
3,50 USD + KDV
*13,48 TL den başlayan taksitlerle!
144,95 TL
FMH11N90E TO-3P 11A 900V 285W 1Ω N-CHANNEL MOSFET
FMH11N90E MOSFET
Type Designator: FMH11N90E
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 285 W
Maximum Drain-Source Voltage |Vds|: 900 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4.5 V
Maximum Drain Current |Id|: 11 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 60 nC
Rise Time (tr): 32 nS
Drain-Source Capacitance (Cd): 200 pF
Maximum Drain-Source On-State Resistance (Rds): 1 Ohm

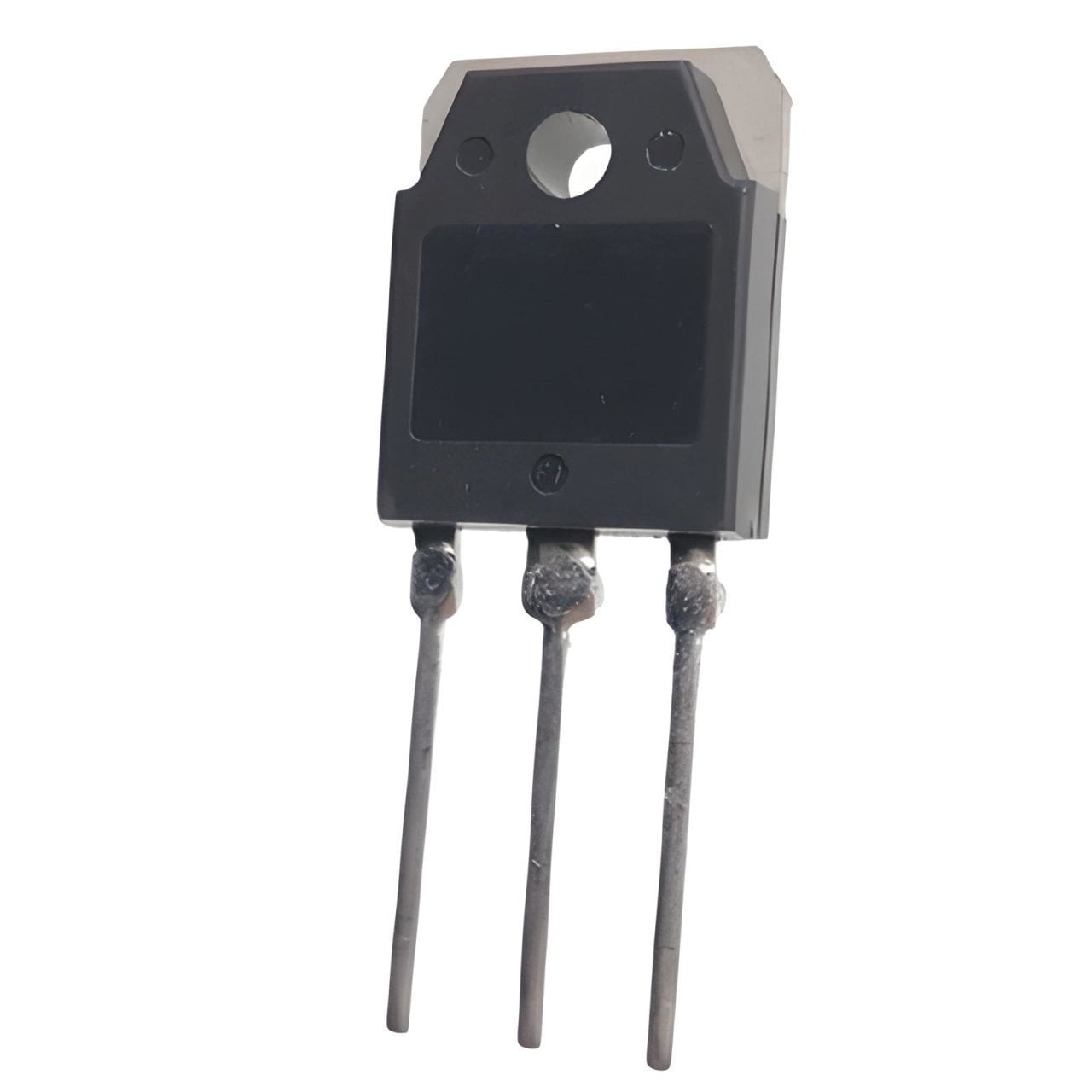

Package: TO-3P-Q
Bu ürüne ilk yorumu siz yapın!
