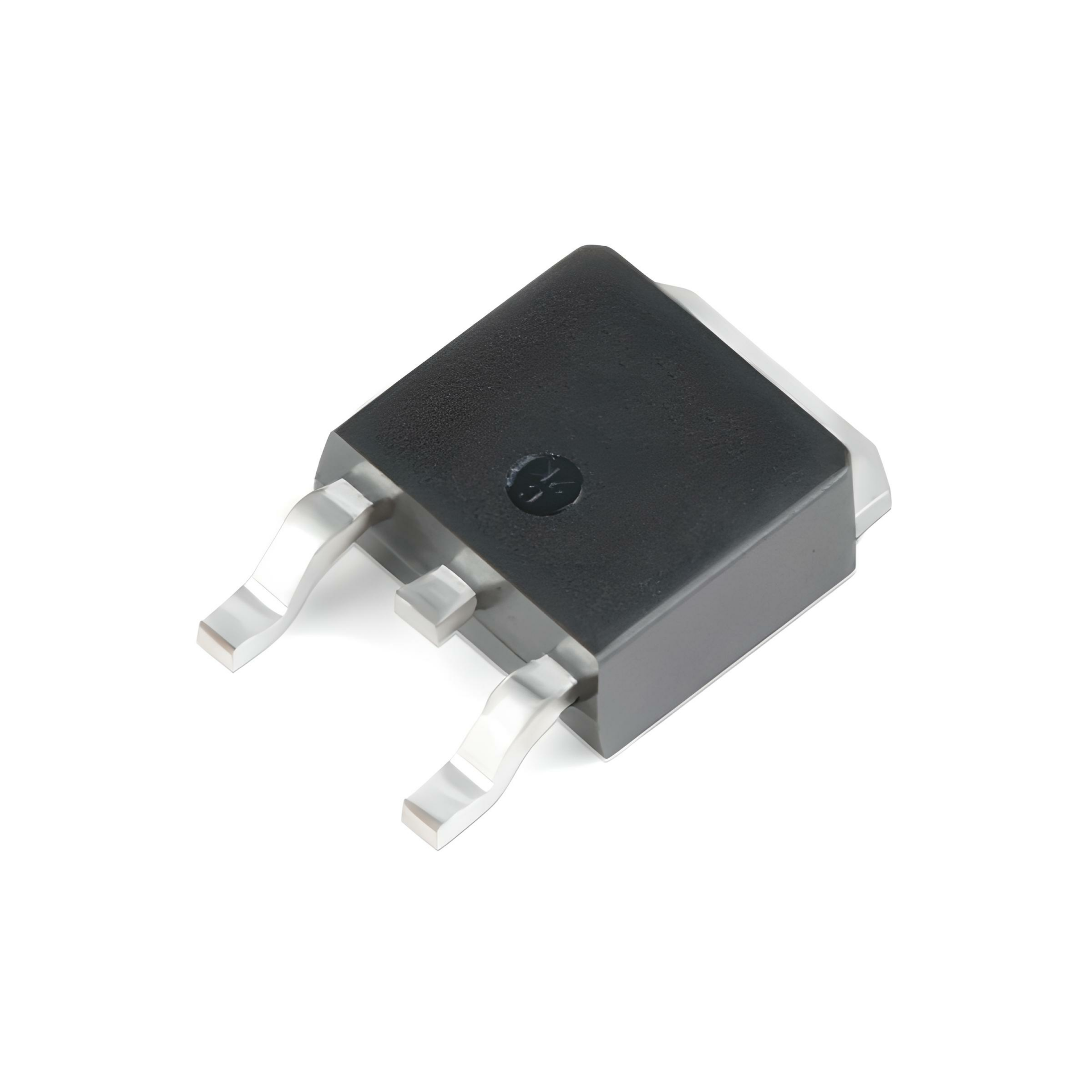

FDD6635 TO-252 59A 35V 55W 0.01OHM N-CHANNEL MOSFET
0 - Yorum
Kategori
Kalan Adet
20 Adet
Fiyat
0,95 USD + KDV
*3,65 TL den başlayan taksitlerle!
39,21 TL
FDD6635 TO-252 59A 35V 55W 0.01OHM N-CHANNEL MOSFET
FDD6635 MOSFET
Type Designator: FDD6635
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 55 W
Maximum Drain-Source Voltage |Vds|: 35 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3 V
Maximum Drain Current |Id|: 59 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 26 nC
Maximum Drain-Source On-State Resistance (Rds): 0.01 Ohm
