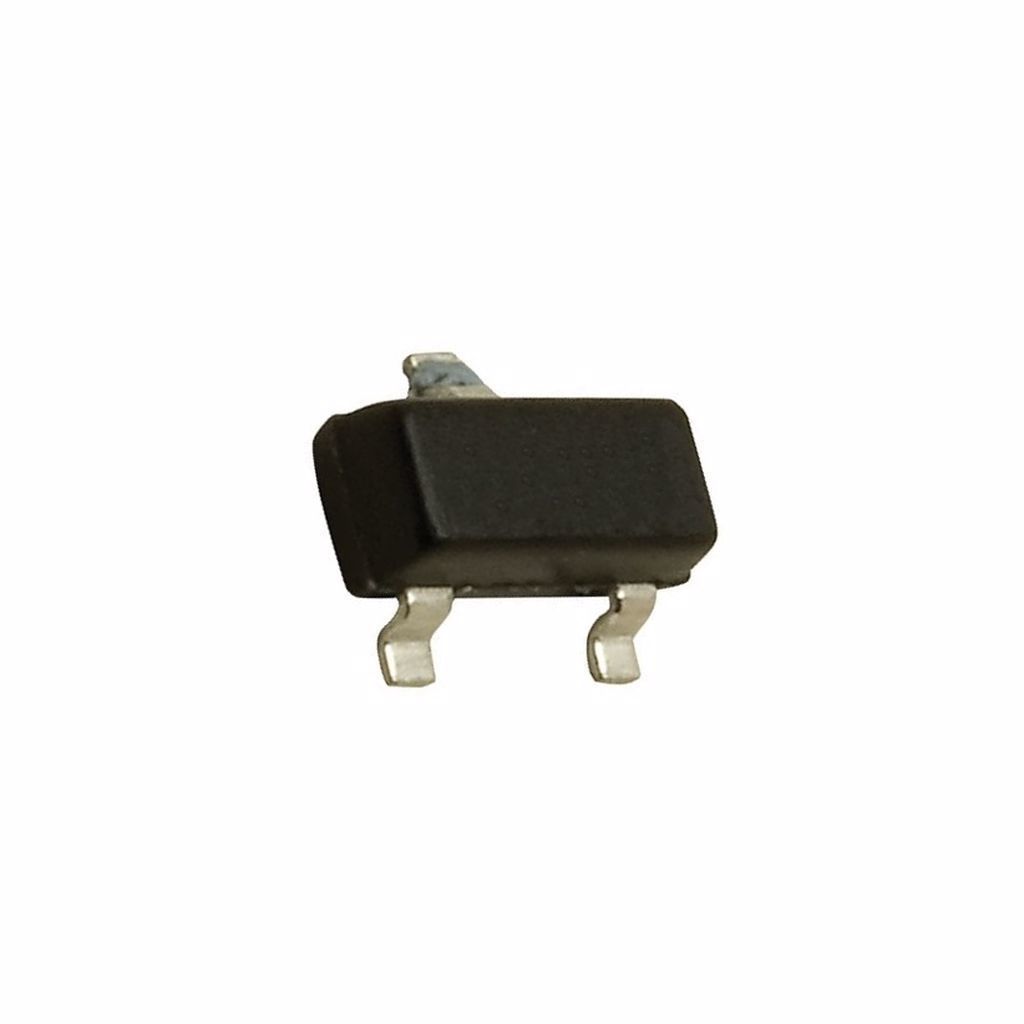

CJ3401 - (R1) SOT-23 4.2A 30V P-CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
1978 Adet
Fiyat
0,18 USD + KDV
*0,69 TL den başlayan taksitlerle!
7,45 TL
CJ3401
Type Designator: CJ3401
Marking Code: R1
Type of Transistor: MOSFET
Type of Control Channel: P -Channel
Maximum Power Dissipation (Pd): 0.35 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 12 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 1.3 V
Maximum Drain Current |Id|: 4.2 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 3.2 nS
Drain-Source Capacitance (Cd): 115 pF
Maximum Drain-Source On-State Resistance (Rds): 0.065 Ohm
Package: SOT-23
