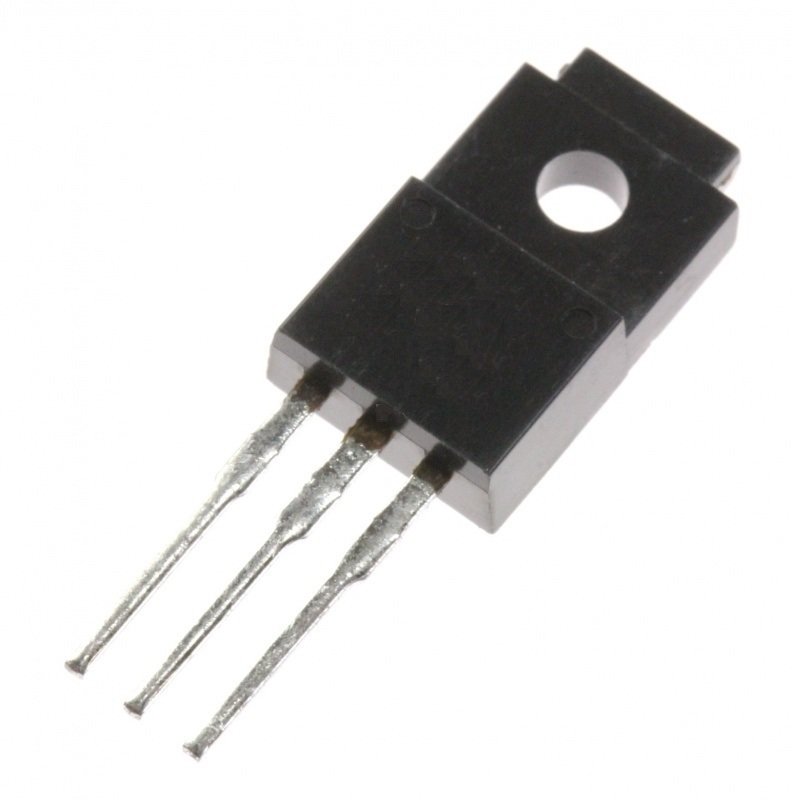

BUX85F TO-220FA 2A 1000V NPN POWER TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
13 Adet
Fiyat
0,69 USD + KDV
*2,66 TL den başlayan taksitlerle!
28,58 TL
BUX85F TO-220FA 2A 1000V NPN POWER TRANSISTOR
BUX85F
Type Designator: BUX85F
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 40 W
Maximum Collector-Base Voltage |Vcb|: 1000 V
Maximum Collector-Emitter Voltage |Vce|: 450 V
Maximum Emitter-Base Voltage |Veb|: 10 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 200 °C
Transition Frequency (ft): 5 MHz
Forward Current Transfer Ratio (hFE), MIN: 50
Package: ISO220
