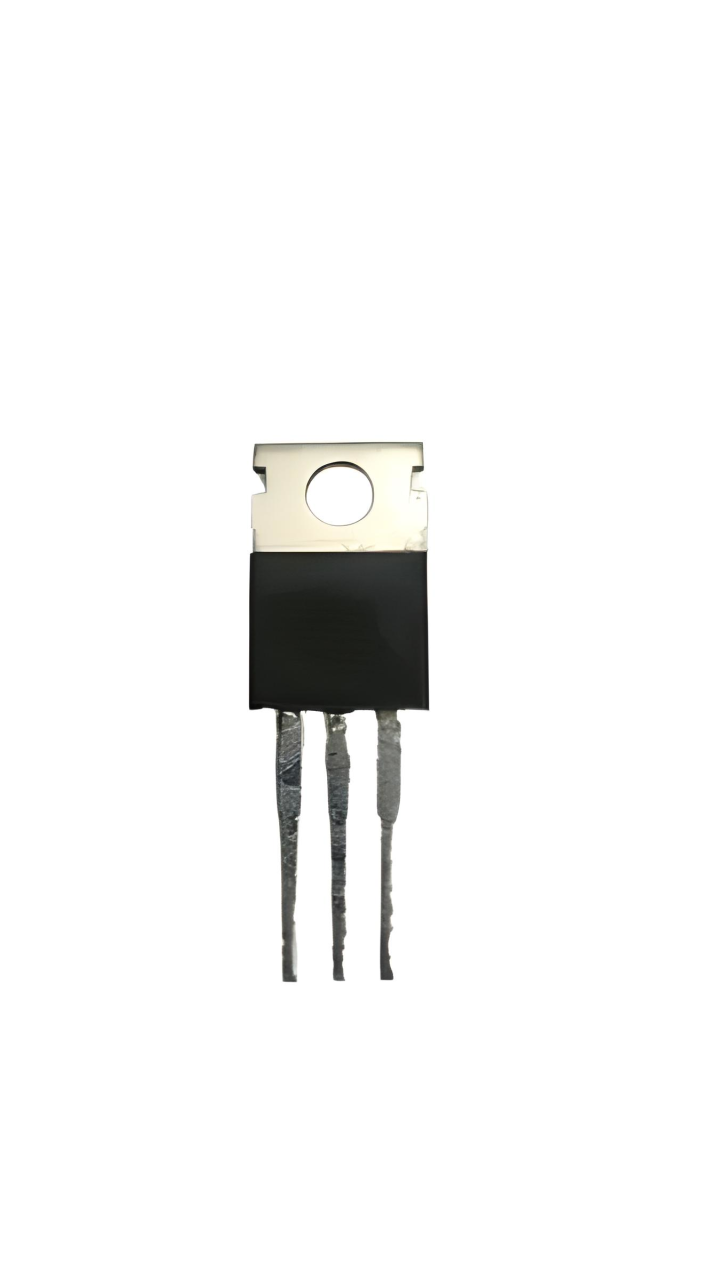

BUX85 TO-220 2A 1000V NPN POWER TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
100 Adet
Fiyat
0,69 USD + KDV
*2,66 TL den başlayan taksitlerle!
28,58 TL
BUX85 TO-220 2A 10000V NPN POWER TRANSISTOR
BUX85
Type Designator: BUX85
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 40 W
Maximum Collector-Base Voltage |Vcb|: 1000 V
Maximum Collector-Emitter Voltage |Vce|: 500 V
Maximum Emitter-Base Voltage |Veb|: 10 V
Maximum Collector Current |Ic max|: 3 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 5 MHz
Forward Current Transfer Ratio (hFE), MIN: 5
Package: TOP66
