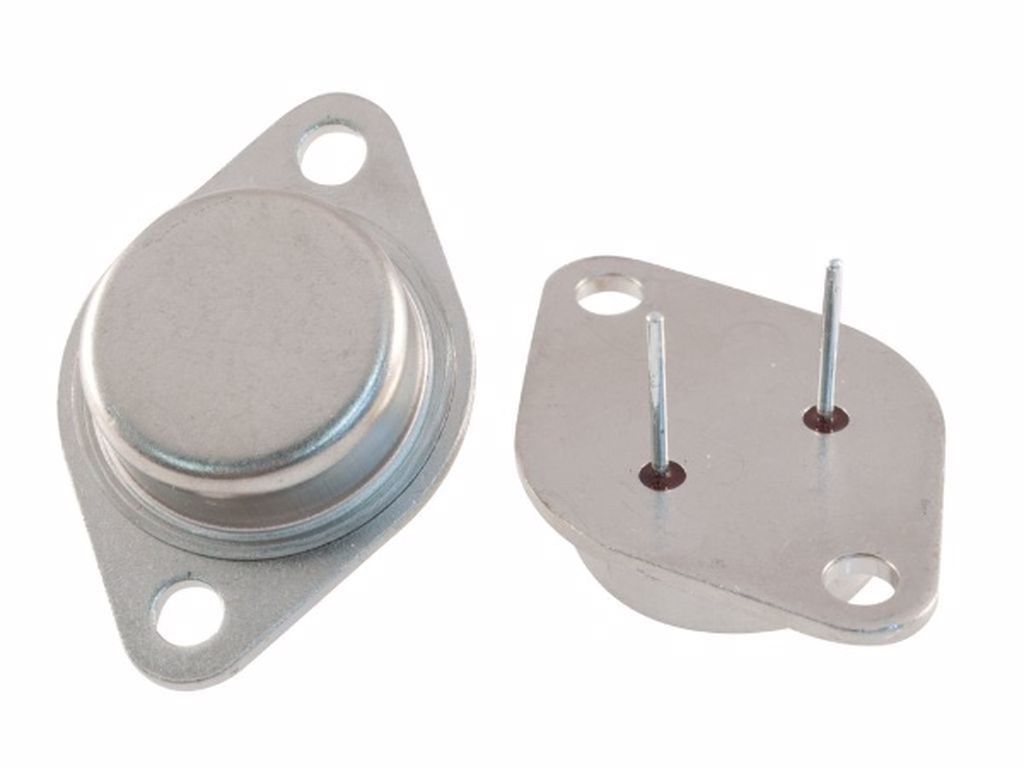

BUX80 TO-3 10A 800V NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
2 Adet
Fiyat
3,50 USD + KDV
*13,48 TL den başlayan taksitlerle!
144,95 TL
BUX80 TO3 800V 10A 100W NPN TRANSISTOR
BUX80
Type Designator: BUX80
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 100 W
Maximum Collector-Base Voltage |Vcb|: 800 V
Maximum Collector-Emitter Voltage |Vce|: 400 V
Maximum Emitter-Base Voltage |Veb|: 10 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN: 15
Package: TO3
Bu ürüne ilk yorumu siz yapın!
