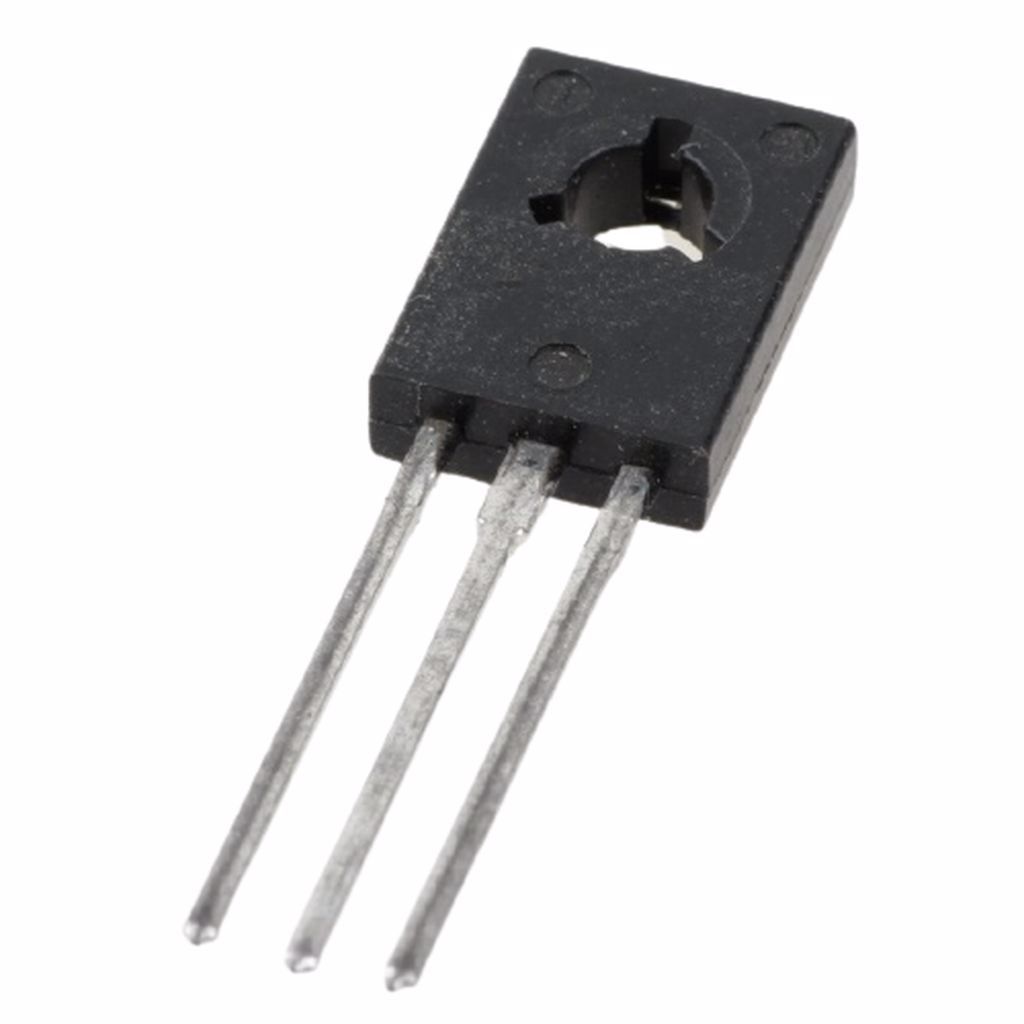

BUW84 TO-126 2A 800V NPN POWER TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
10 Adet
Fiyat
0,35 USD + KDV
*1,35 TL den başlayan taksitlerle!
14,49 TL
BUW84 TO-126 2A 800V NPN POWER TRANSISTOR
BUW84
Type Designator: BUW84
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 50 W
Maximum Collector-Base Voltage |Vcb|: 800 V
Maximum Collector-Emitter Voltage |Vce|: 400 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 10 MHz
Forward Current Transfer Ratio (hFE), MIN: 50
Package: TO126
