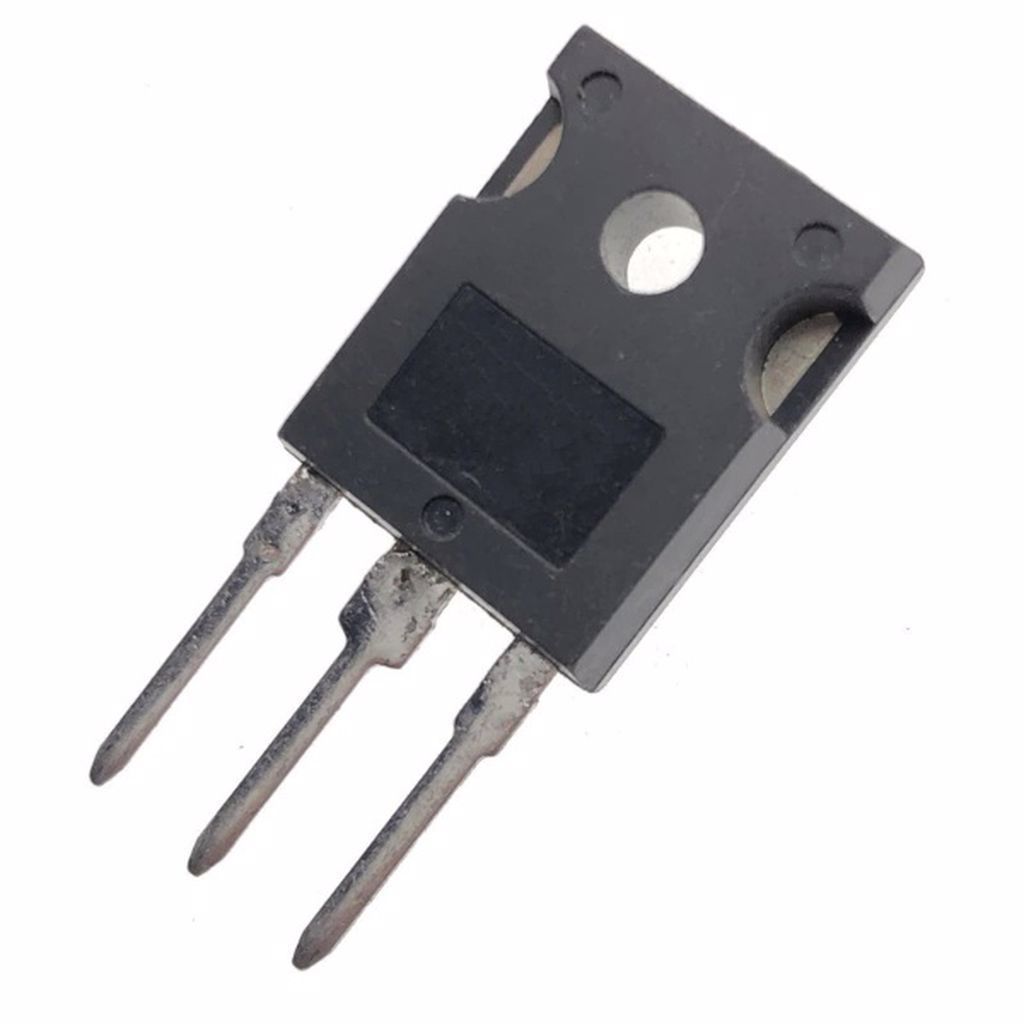

BUV48A TO-247 15A 450V 125W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
260 Adet
Fiyat
5,35 USD + KDV
*20,51 TL den başlayan taksitlerle!
220,60 TL
BUV48A
Type Designator: BUV48A
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 150 W
Maximum Collector-Base Voltage |Vcb|: 1000 V
Maximum Collector-Emitter Voltage |Vce|: 450 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 15 A
Max. Operating Junction Temperature (Tj): 200 °C
Transition Frequency (ft): 5 MHz
Collector Capacitance (Cc): 250 pF
Forward Current Transfer Ratio (hFE), MIN: 5
Package: TOP3
