BUL58D TO-220 8A 450V 75W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
50 Adet
Fiyat
1,20 USD + KDV
*4,60 TL den başlayan taksitlerle!
49,48 TL
BUL58D TO-220 8A 450V 75W NPN TRANSISTOR
BUL58D
Type Designator: BUL58D
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 75 W
Maximum Collector-Base Voltage |Vcb|: 800 V
Maximum Collector-Emitter Voltage |Vce|: 450 V
Maximum Emitter-Base Voltage |Veb|: 9 V
Maximum Collector Current |Ic max|: 8 A
Max. Operating Junction Temperature (Tj): 150 °C
Forward Current Transfer Ratio (hFE), MIN: 8

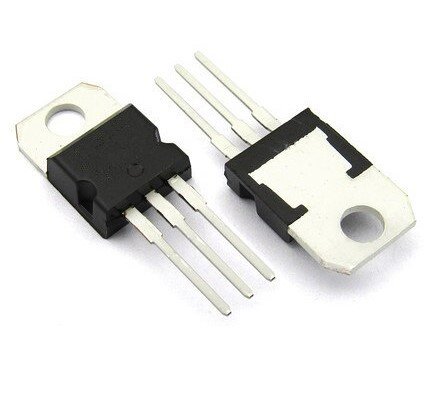

Package: TO220
