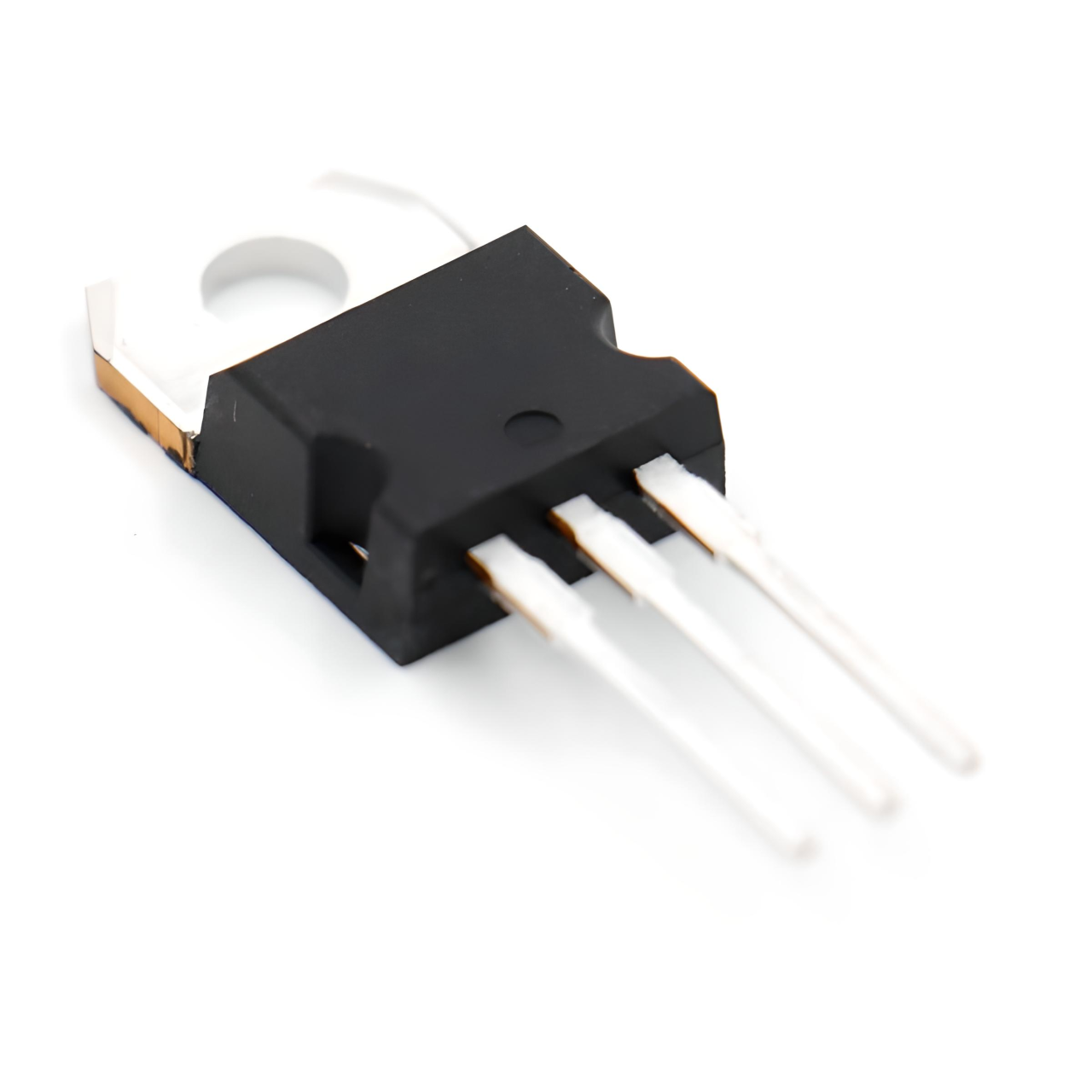

BUL310 TO-220 5A 1000V 75W NPN BIPOLAR TRANSISTOR
BUL310
Type Designator: BUL310
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 75 W
Maximum Collector-Base Voltage |Vcb|: 1000 V
Maximum Collector-Emitter Voltage |Vce|: 500 V
Maximum Emitter-Base Voltage |Veb|: 9 V
Maximum Collector Current |Ic max|: 5 A
Max. Operating Junction Temperature (Tj): 150 °C
Forward Current Transfer Ratio (hFE), MIN: 10
Package: TO220
