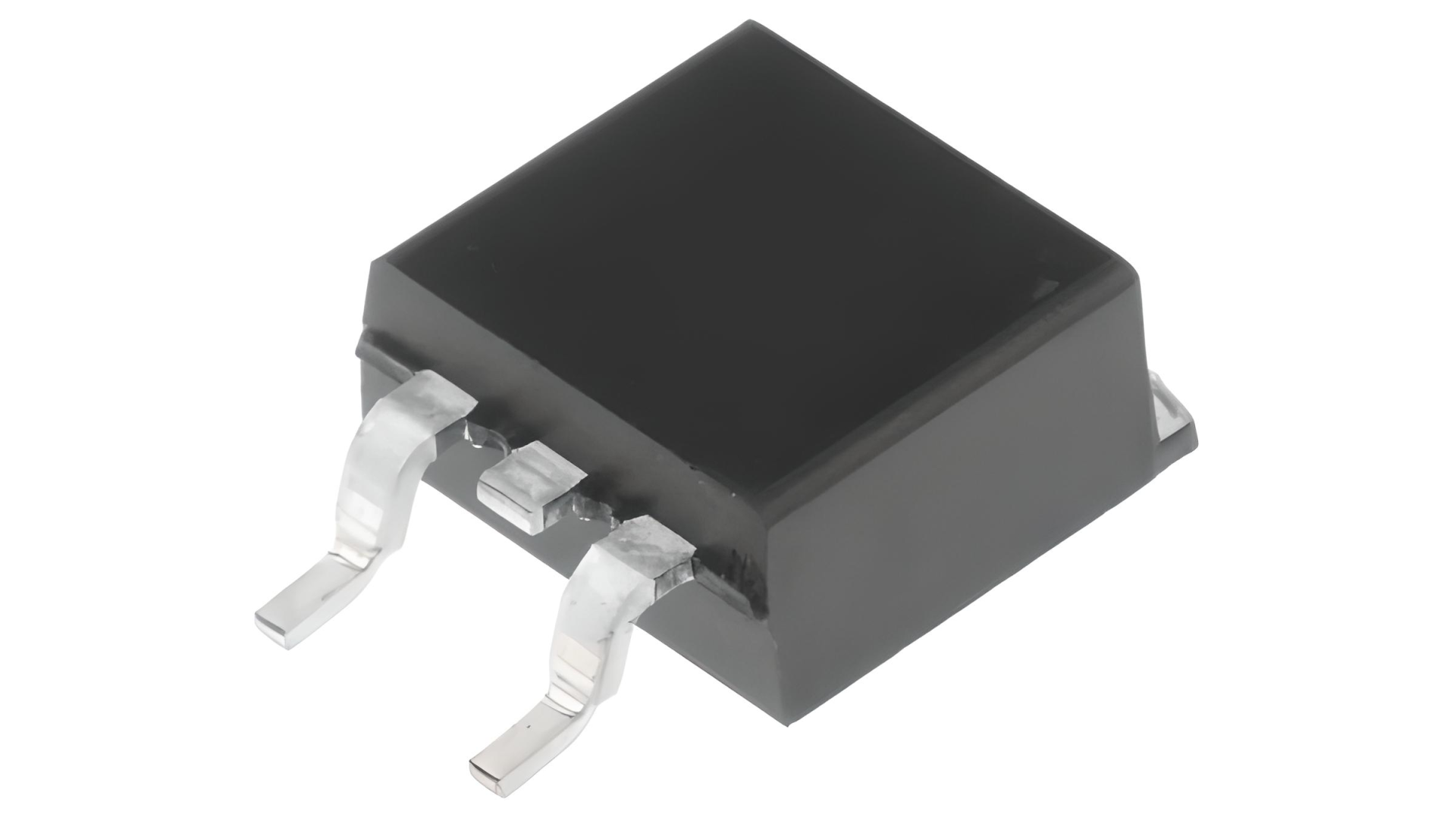

BUK7614-55A TO-263 73A 55V 166W 14mΩ N-CHANNEL MOSFET
0 - Yorum
Kategori
Kalan Adet
12 Adet
Fiyat
3,50 USD + KDV
*13,48 TL den başlayan taksitlerle!
144,95 TL
BUK7614-55A MOSFET
Type Designator: BUK7614-55A
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 166 W
Maximum Drain-Source Voltage |Vds|: 55 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 73 A
Maximum Junction Temperature (Tj): 175 °C
Maximum Drain-Source On-State Resistance (Rds): 0.014 Ohm
Package: D2PAK
