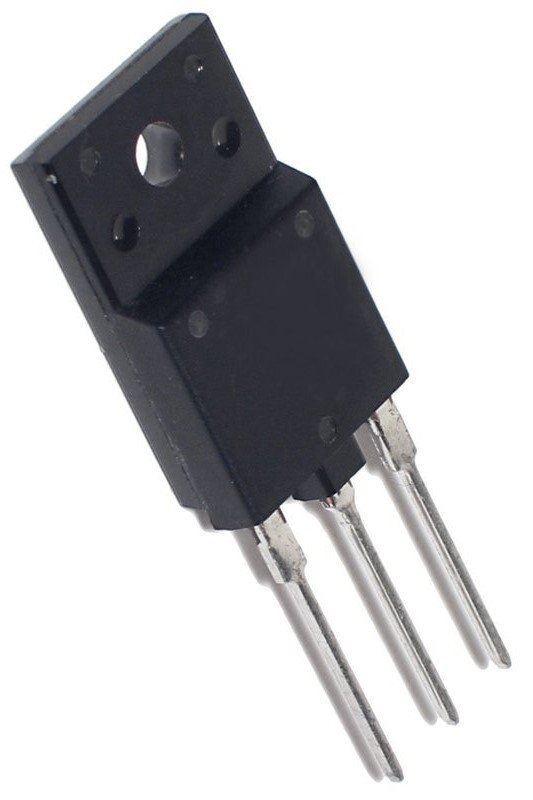

BUH515D ISO-218 8A 1500V NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
3 Adet
Fiyat
1,75 USD + KDV
*6,71 TL den başlayan taksitlerle!
72,16 TL
BUH515D
Type Designator: BUH515D
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 60 W
Maximum Collector-Base Voltage |Vcb|: 1500 V
Maximum Collector-Emitter Voltage |Vce|: 700 V
Maximum Emitter-Base Voltage |Veb|: 10 V
Maximum Collector Current |Ic max|: 8 A
Max. Operating Junction Temperature (Tj): 150 °C
Forward Current Transfer Ratio (hFE), MIN: 10
Package: ISO218
