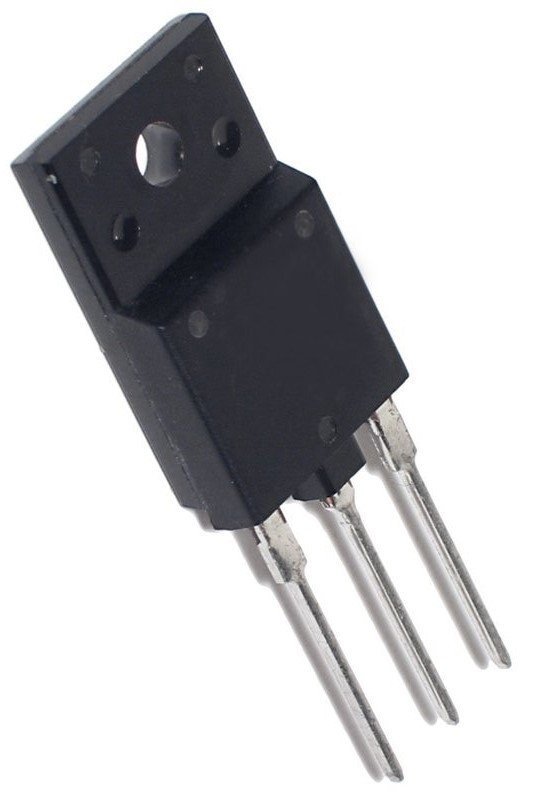

BUH315D ISO-218 10A 1700V NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
4 Adet
Fiyat
1,76 USD + KDV
*6,75 TL den başlayan taksitlerle!
72,57 TL
BUH315D
Type Designator: BUH315D
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 50 W
Maximum Collector-Base Voltage |Vcb|: 1500 V
Maximum Collector-Emitter Voltage |Vce|: 700 V
Maximum Emitter-Base Voltage |Veb|: 10 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 150 °C
Forward Current Transfer Ratio (hFE), MIN: 5.5
Package: ISO218
