BU526A TO-3 8A 900V SILICON NPN POWER TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
0 Adet
Fiyat
4,50 USD + KDV
*17,33 TL den başlayan taksitlerle!
186,36 TL
BU526A
Type Designator: BU526A
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 86 W
Maximum Collector-Base Voltage |Vcb|: 900 V
Maximum Collector-Emitter Voltage |Vce|: 460 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 8 A
Max. Operating Junction Temperature (Tj): 200 °C
Transition Frequency (ft): 10 MHz
Forward Current Transfer Ratio (hFE), MIN: 15

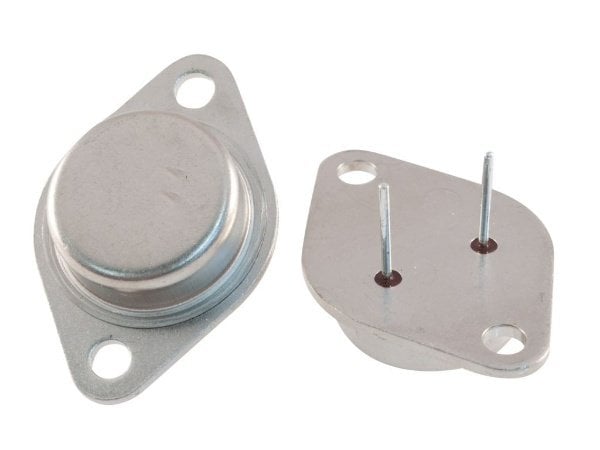

Package: TO3
