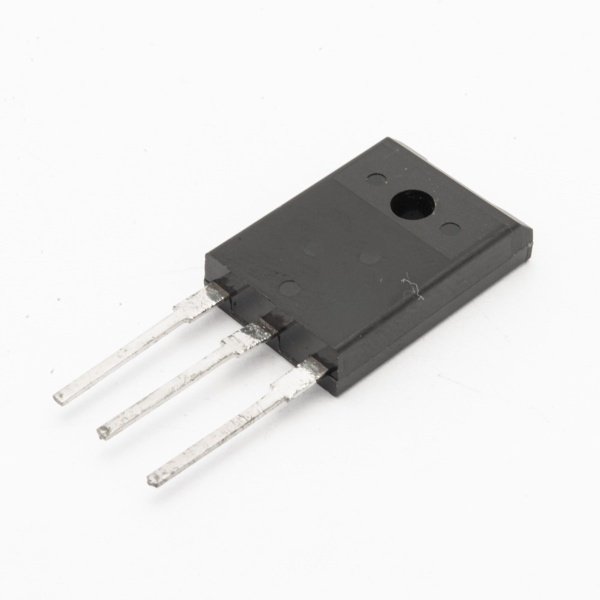

BU2527DF TO-3PF 8A 800V SILICON DIFFUSED POWER TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
10 Adet
Fiyat
1,95 USD + KDV
*7,48 TL den başlayan taksitlerle!
80,41 TL
BU2527DF
Type Designator: BU2527DF
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 45 W
Maximum Collector-Base Voltage |Vcb|: 800 V
Maximum Collector-Emitter Voltage |Vce|: 800 V
Maximum Emitter-Base Voltage |Veb|: 13.5 V
Maximum Collector Current |Ic max|: 8 A
Max. Operating Junction Temperature (Tj): 150 °C
Collector Capacitance (Cc): 145 pF
Forward Current Transfer Ratio (hFE), MIN: 11
Package: SOT199
