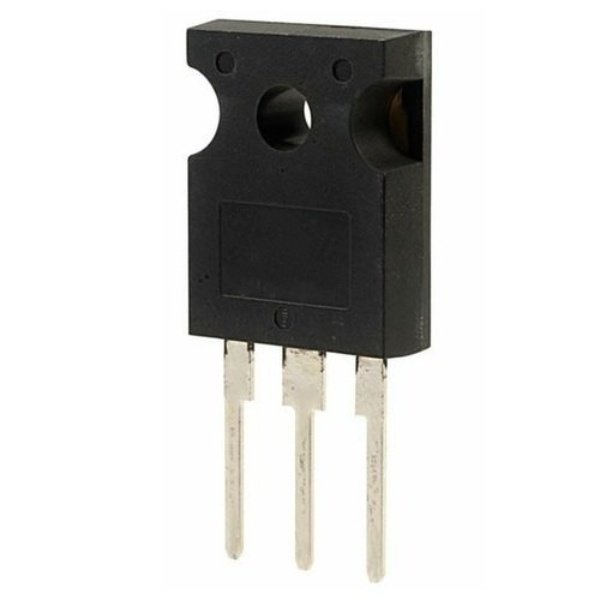

BU2520AW TO-247 10A 1500V SILICON NPN POWER TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
170 Adet
Fiyat
1,10 USD + KDV
*4,22 TL den başlayan taksitlerle!
45,36 TL
BU2520AW
Type Designator: BU2520AW
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 125 W
Maximum Collector-Base Voltage |Vcb|: 1500 V
Maximum Collector-Emitter Voltage |Vce|: 800 V
Maximum Emitter-Base Voltage |Veb|: 7.5 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 150 °C
Collector Capacitance (Cc): 115 pF
Forward Current Transfer Ratio (hFE), MIN: 5
Package: TO247 SOT429
