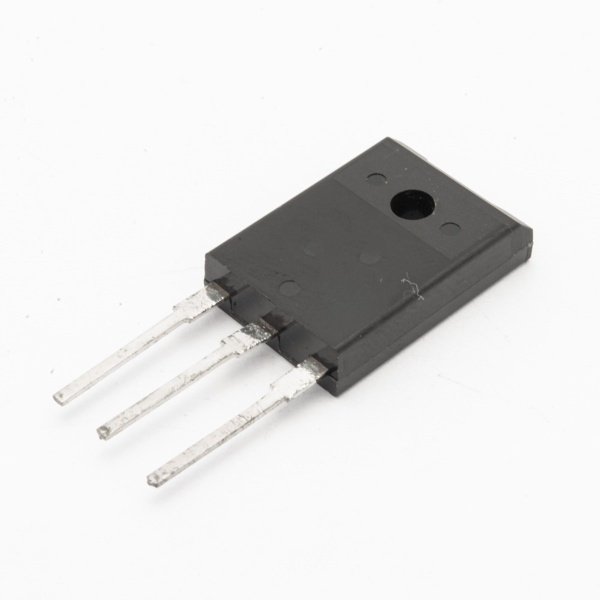

BU2520AF TO-3PF 10A 1500V SILICON NPN POWER TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
1 Adet
Fiyat
1,95 USD + KDV
*7,51 TL den başlayan taksitlerle!
80,76 TL
BU2520AF
Type Designator: BU2520AF
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 45 W
Maximum Collector-Base Voltage |Vcb|: 1500 V
Maximum Collector-Emitter Voltage |Vce|: 800 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 150 °C
Collector Capacitance (Cc): 115 pF
Forward Current Transfer Ratio (hFE), MIN: 5
Package: SOT199
