BU2520A TO-218 10A 1500V SILICON DIFFUSED POWER TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
10 Adet
Fiyat
0,97 USD + KDV
*3,72 TL den başlayan taksitlerle!
40,00 TL
BU2520A
Type Designator: BU2520A
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 125 W
Maximum Collector-Base Voltage |Vcb|: 1500 V
Maximum Collector-Emitter Voltage |Vce|: 800 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 150 °C
Collector Capacitance (Cc): 115 pF
Forward Current Transfer Ratio (hFE), MIN: 5

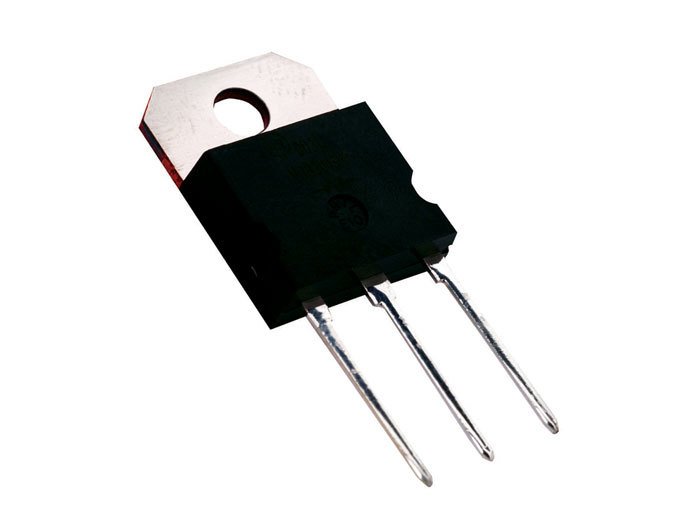

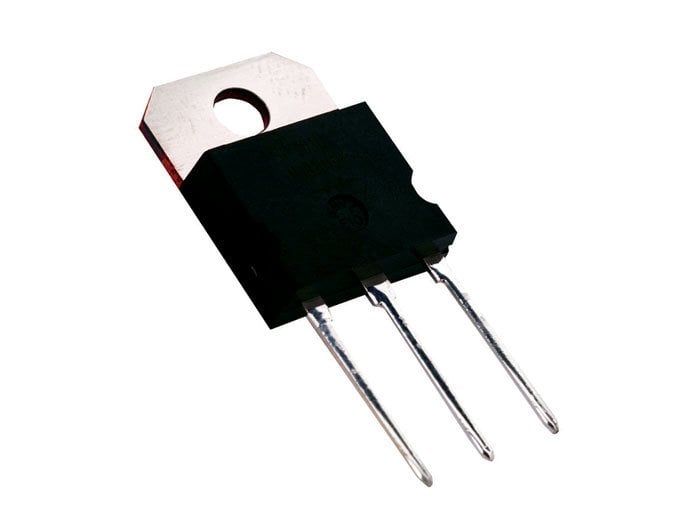

Package: TO218
Bu ürüne ilk yorumu siz yapın!
