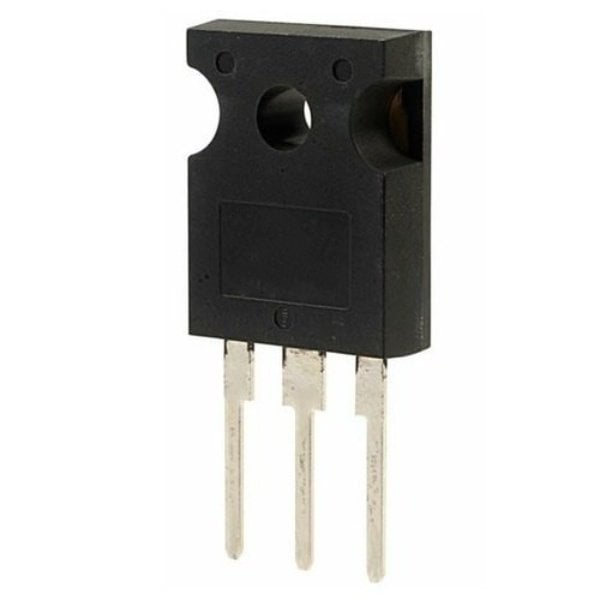

BU2508AW TO-247 8A 1500V SILICON DIFFUSED POWER TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
2 Adet
Fiyat
1,00 USD + KDV
*3,83 TL den başlayan taksitlerle!
41,23 TL
BU2508AW
Type Designator: BU2508AW
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 125 W
Maximum Collector-Base Voltage |Vcb|: 1500 V
Maximum Collector-Emitter Voltage |Vce|: 700 V
Maximum Emitter-Base Voltage |Veb|: 7.5 V
Maximum Collector Current |Ic max|: 8 A
Max. Operating Junction Temperature (Tj): 150 °C
Collector Capacitance (Cc): 80 pF
Forward Current Transfer Ratio (hFE), MIN: 4
Package: TO247 SOT429
