BU204 TO-3 2.5A 1300V SILICON NPN POWER TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
127 Adet
Fiyat
0,50 USD + KDV
*1,92 TL den başlayan taksitlerle!
20,62 TL
BU204
Type Designator: BU204
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 10 W
Maximum Collector-Base Voltage |Vcb|: 1300 V
Maximum Collector-Emitter Voltage |Vce|: 600 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 2.5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 7.5 MHz
Forward Current Transfer Ratio (hFE), MIN: 2

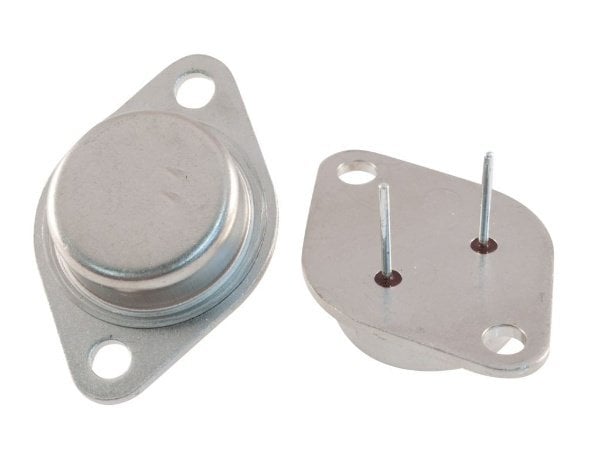

Package: TO3
