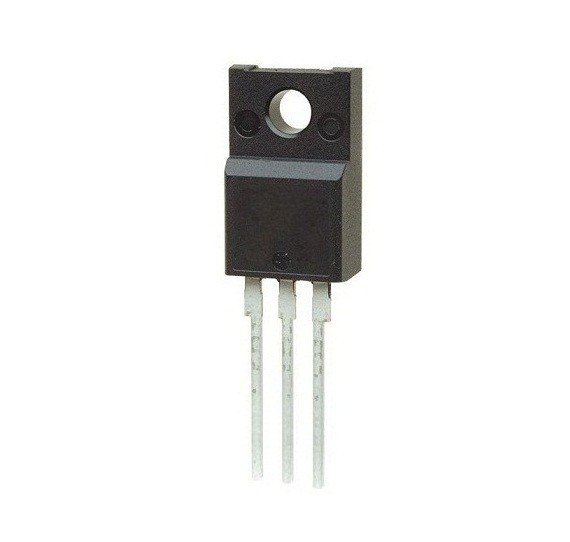

BU1506DX TO-220F 5A 700V SILICON DIFFUSED POWER TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
10 Adet
Fiyat
1,55 USD + KDV
*5,94 TL den başlayan taksitlerle!
63,91 TL
BU1506DX
Type Designator: BU1506DX
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 32 W
Maximum Collector-Base Voltage |Vcb|: 700 V
Maximum Collector-Emitter Voltage |Vce|: 700 V
Maximum Emitter-Base Voltage |Veb|: 13.5 V
Maximum Collector Current |Ic max|: 5 A
Max. Operating Junction Temperature (Tj): 150 °C
Collector Capacitance (Cc): 47 pF
Forward Current Transfer Ratio (hFE), MIN: 12
Package: SOT186A
