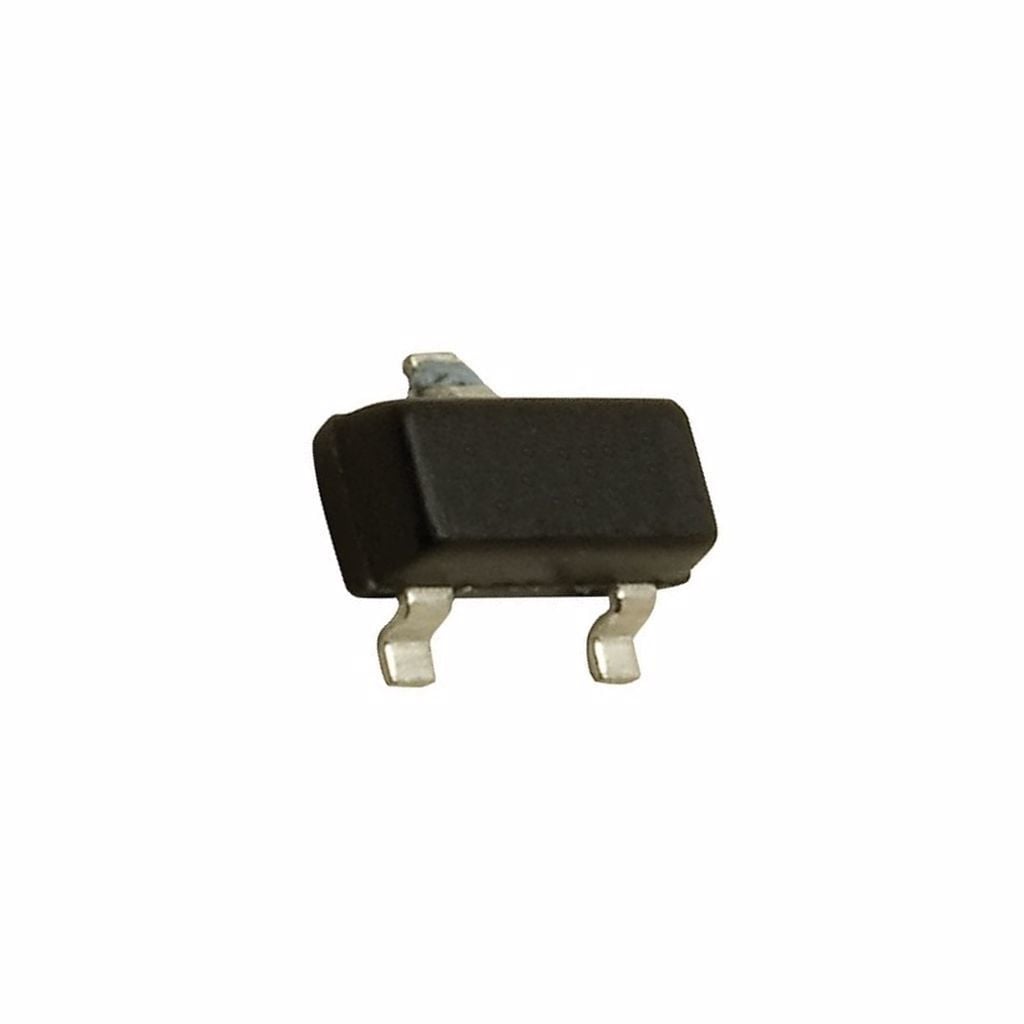

BSV52 SOT-23 0.05A 20V 0.15W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
0 Adet
Fiyat
0,20 USD + KDV
*0,77 TL den başlayan taksitlerle!
8,28 TL
BSV52 SOT-23 0.05A 20V 0.15W NPN TRANSISTOR
BSV52
Type Designator: BSV52
SMD Transistor Code: B2_B2p_B2t_B2W
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.15 W
Maximum Collector-Base Voltage |Vcb|: 20 V
Maximum Collector-Emitter Voltage |Vce|: 12 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.05 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 400 MHz
Collector Capacitance (Cc): 5 pF
Forward Current Transfer Ratio (hFE), MIN: 40
Package: TO236
