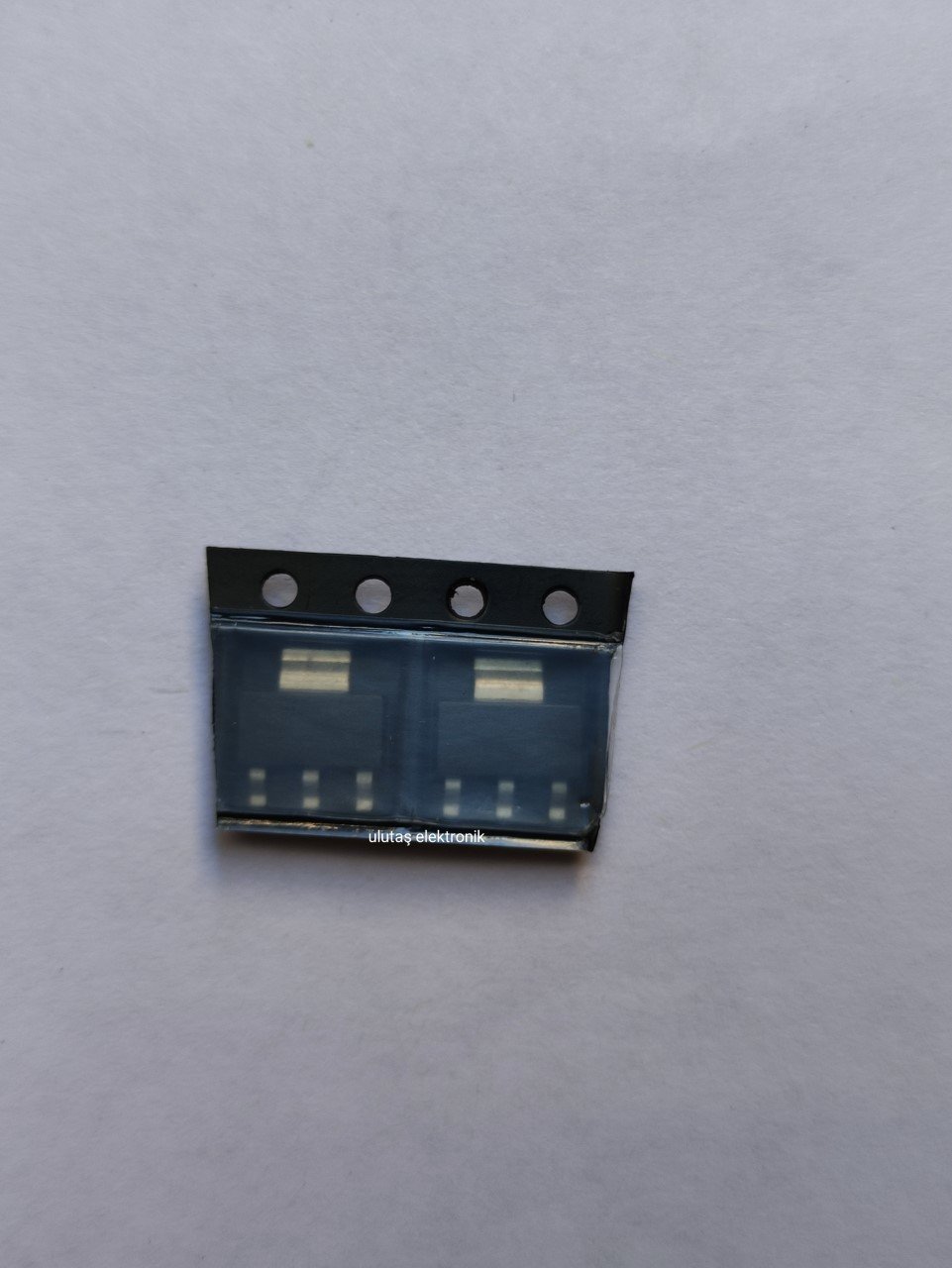

BSP129 SOT-223 0.35A 240V MOSFET
0 - Yorum
Kategori
Kalan Adet
200 Adet
Fiyat
1,05 USD + KDV
*4,04 TL den başlayan taksitlerle!
43,48 TL
BSP129 MOSFET. Datasheet pdf. Equivalent
Type Designator: BSP129
Marking Code: BSP129
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 1.8 W
Maximum Drain-Source Voltage |Vds|: 240 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 1 V
Maximum Drain Current |Id|: 0.35 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 3.8 nC
Rise Time (tr): 4.1 nS
Drain-Source Capacitance (Cd): 12 pF
Maximum Drain-Source On-State Resistance (Rds): 6 Ohm
Package: SOT-223
