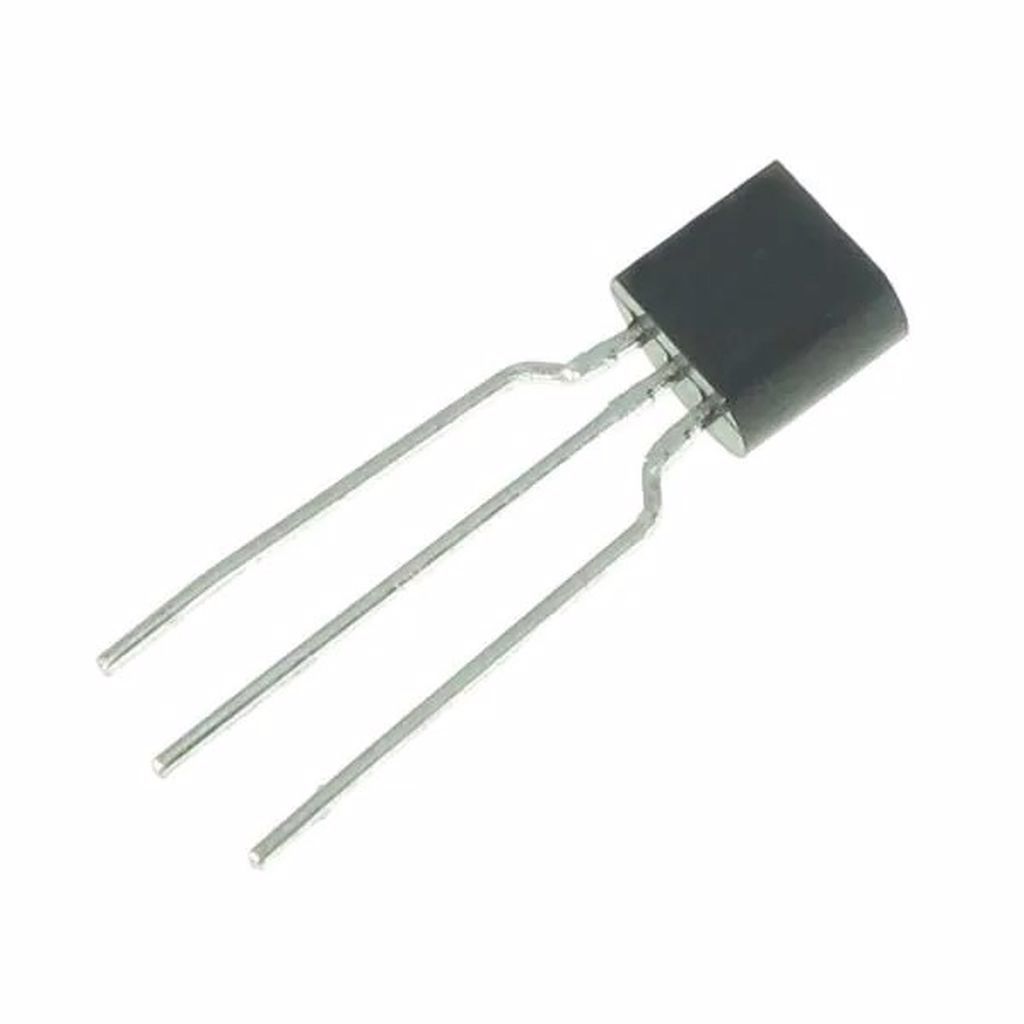

BS107 TO-92 250MA 200V N-CHANNEL MOSFET TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
130 Adet
Fiyat
0,69 USD + KDV
*2,66 TL den başlayan taksitlerle!
28,58 TL
BS107 TO-92 250MA 200V N-CHANNEL MOSFET TRANSISTOR
BS107
Type Designator: BS107
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 0.5 W
Maximum Drain-Source Voltage |Vds|: 200 V
Maximum Gate-Source Voltage |Vgs|: 25 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3 V
Maximum Drain Current |Id|: 0.12 A
Maximum Junction Temperature (Tj): 150 °C
Maximum Drain-Source On-State Resistance (Rds): 28 Ohm
Package: TO-92
Bu ürüne ilk yorumu siz yapın!
