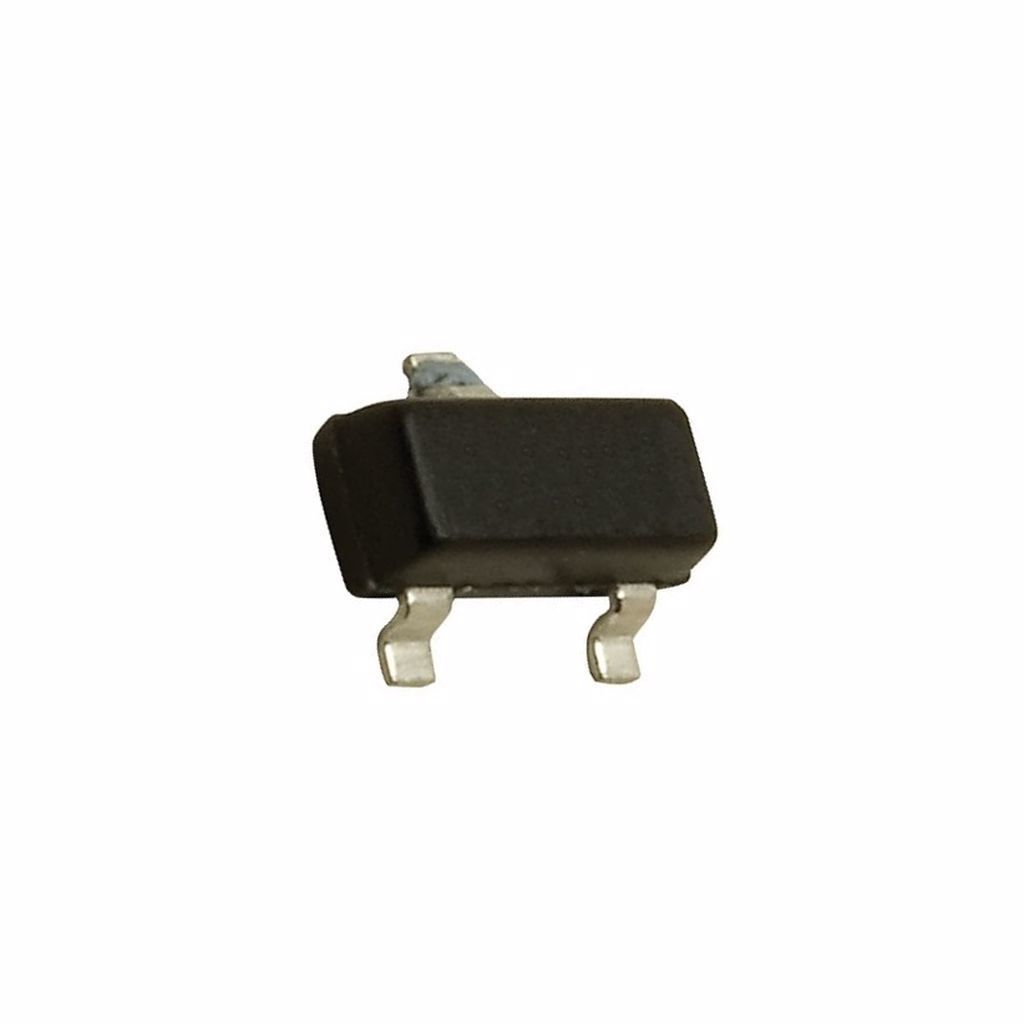

BFR92 - (P1, P1p) SOT-23 0.025A 15V 0.18W NPN TRANSISTOR
0 - Yorum
0,00 TL
BFR92 - (P1, P1p) SOT-23 0.025A 15V 0.18W NPN TRANSISTOR
BFR92
Type Designator: BFR92
SMD Transistor Code: P1_P1p
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.18 W
Maximum Collector-Base Voltage |Vcb|: 20 V
Maximum Collector-Emitter Voltage |Vce|: 15 V
Maximum Emitter-Base Voltage |Veb|: 2 V
Maximum Collector Current |Ic max|: 0.025 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 2500 MHz
Forward Current Transfer Ratio (hFE), MIN: 25
Package: SOT23
