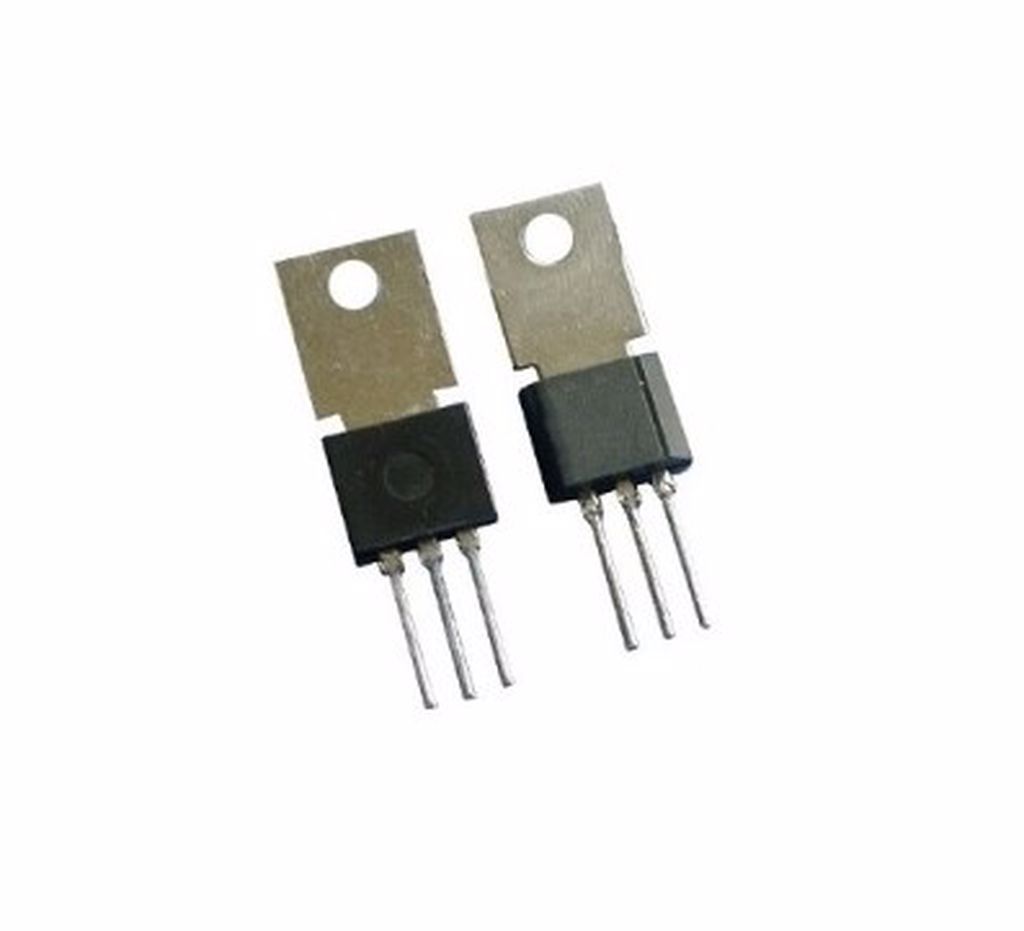

BF857 TO-202 300MA 160V NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
1 Adet
Fiyat
0,10 USD + KDV
*0,39 TL den başlayan taksitlerle!
4,14 TL
BF857 TO-202 300MA 160V NPN TRANSISTOR
BF857
Type Designator: BF857
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 1.8 W
Maximum Collector-Base Voltage |Vcb|: 160 V
Maximum Collector-Emitter Voltage |Vce|: 160 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 90 MHz
Collector Capacitance (Cc): 4.2 pF
Forward Current Transfer Ratio (hFE), MIN: 25
Package: TO202
