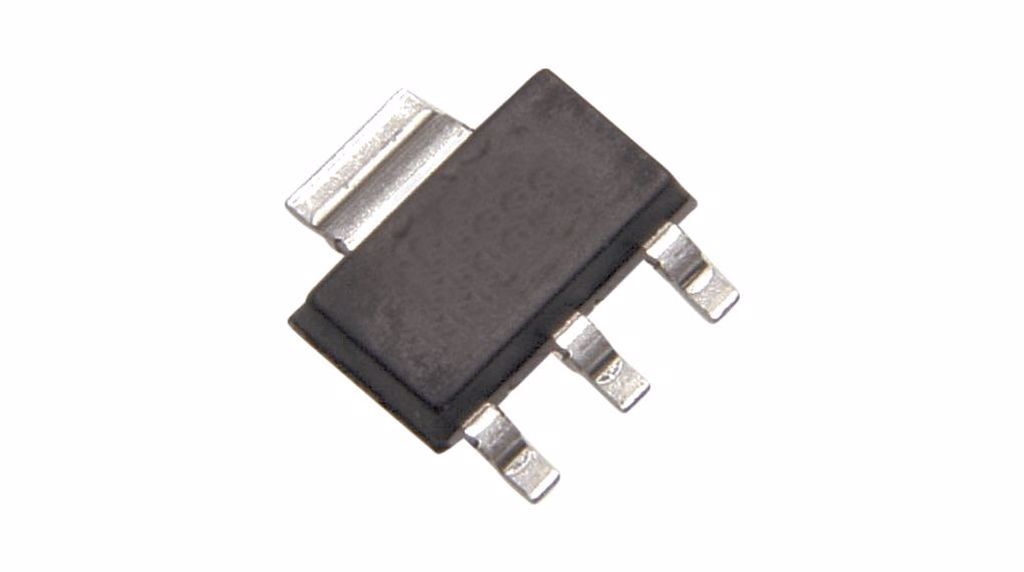

BF723 SOT-223 100MA 250V PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
22 Adet
Fiyat
0,65 USD + KDV
*2,49 TL den başlayan taksitlerle!
26,83 TL
BF723 SOT-223 100MA 250V PNP TRANSISTOR
BF723
Type Designator: BF723
SMD Transistor Code: DB
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 1.5 W
Maximum Collector-Base Voltage |Vcb|: 250 V
Maximum Collector-Emitter Voltage |Vce|: 250 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.05 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 60 MHz
Collector Capacitance (Cc): 1.6 pF
Forward Current Transfer Ratio (hFE), MIN: 50
Package: SP0
