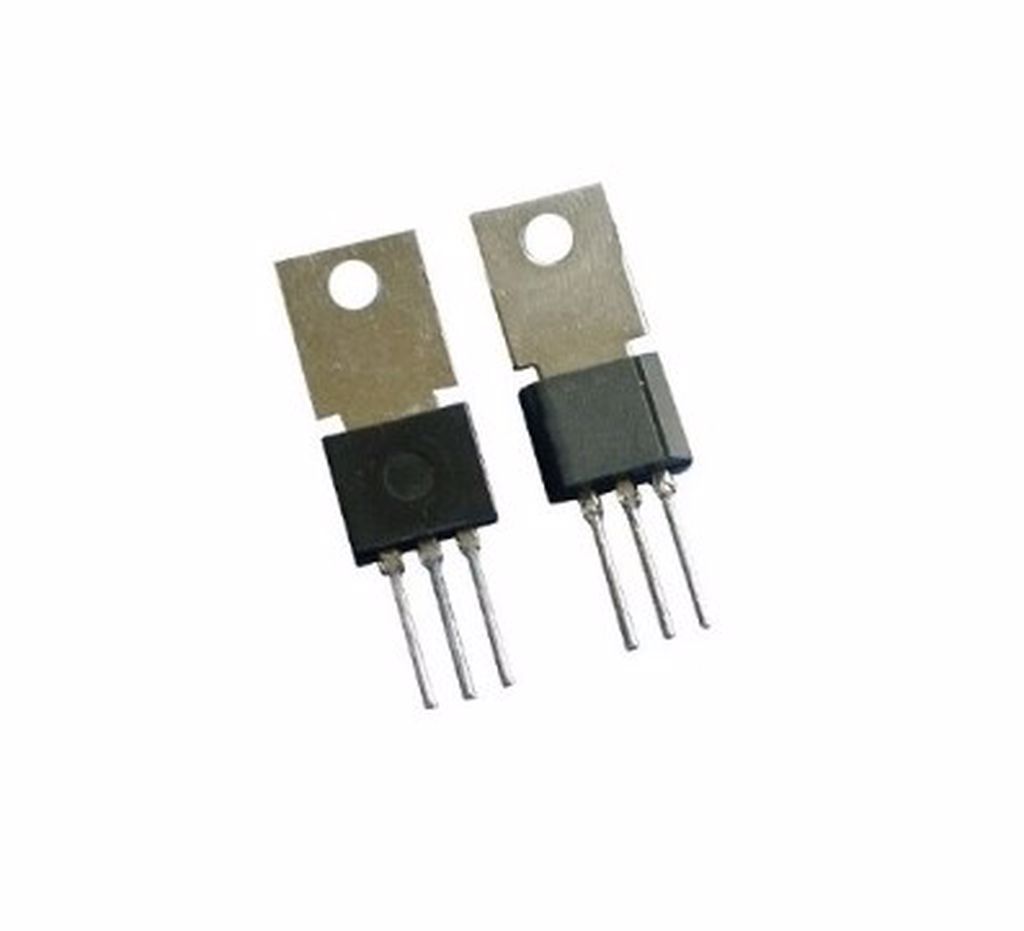

BF616 TO-202 0.2A 250V 10W PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
727 Adet
Fiyat
0,17 USD + KDV
*0,65 TL den başlayan taksitlerle!
7,04 TL
BF616 TO-202 0.2A 250V 10W PNP TRANSISTOR
BF616
Type Designator: BF616
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 10 W
Maximum Collector-Base Voltage |Vcb|: 250 V
Maximum Collector-Emitter Voltage |Vce|: 250 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 70 MHz
Collector Capacitance (Cc): 3 pF
Forward Current Transfer Ratio (hFE), MIN: 30
Package: TO202
Bu ürüne ilk yorumu siz yapın!
