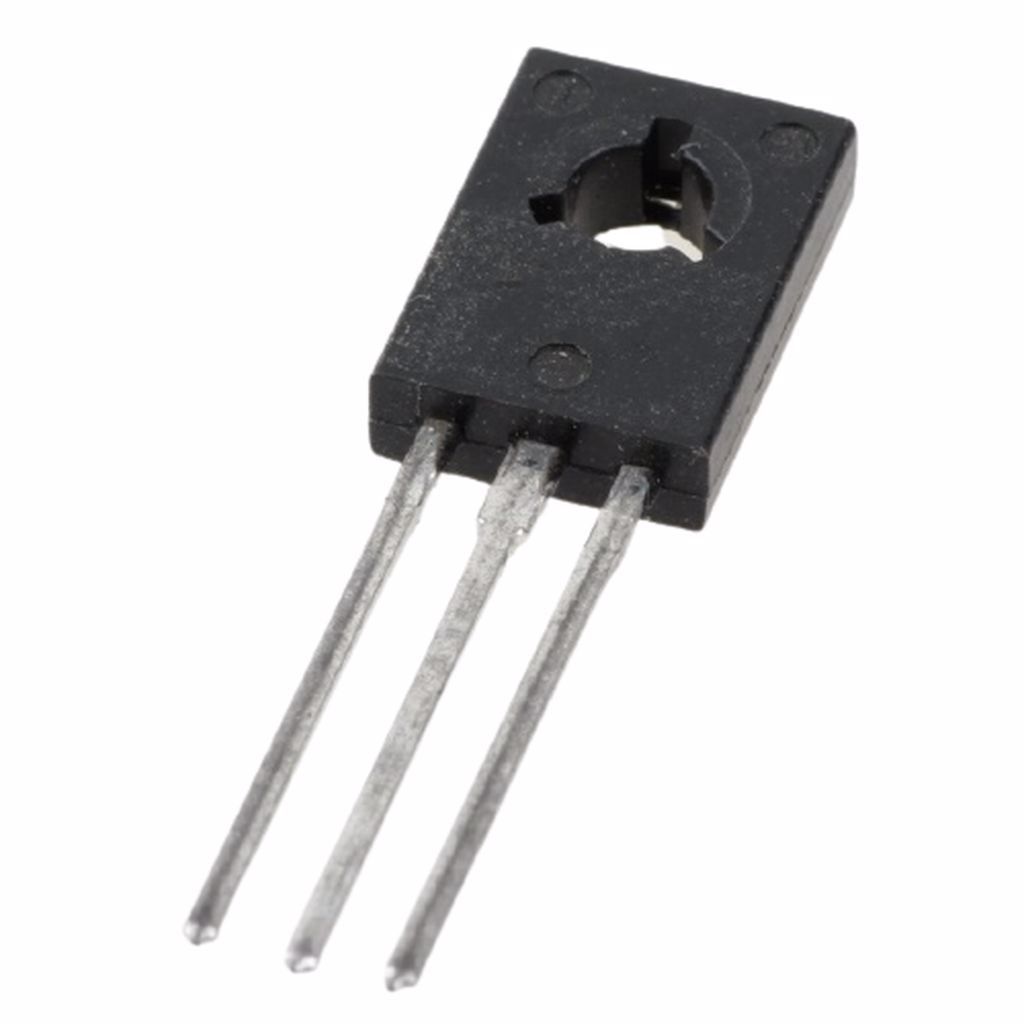

BF472 TO-126 0.1A 300V 2W PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
1 Adet
Fiyat
0,16 USD + KDV
*0,62 TL den başlayan taksitlerle!
6,63 TL
BF472 TO-126 0.1A 300V 2W PNP TRANSISTOR
BF472
Type Designator: BF472
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 2 W
Maximum Collector-Base Voltage |Vcb|: 300 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 60 MHz
Collector Capacitance (Cc): 1.8 pF
Forward Current Transfer Ratio (hFE), MIN: 50
Package: TO126
