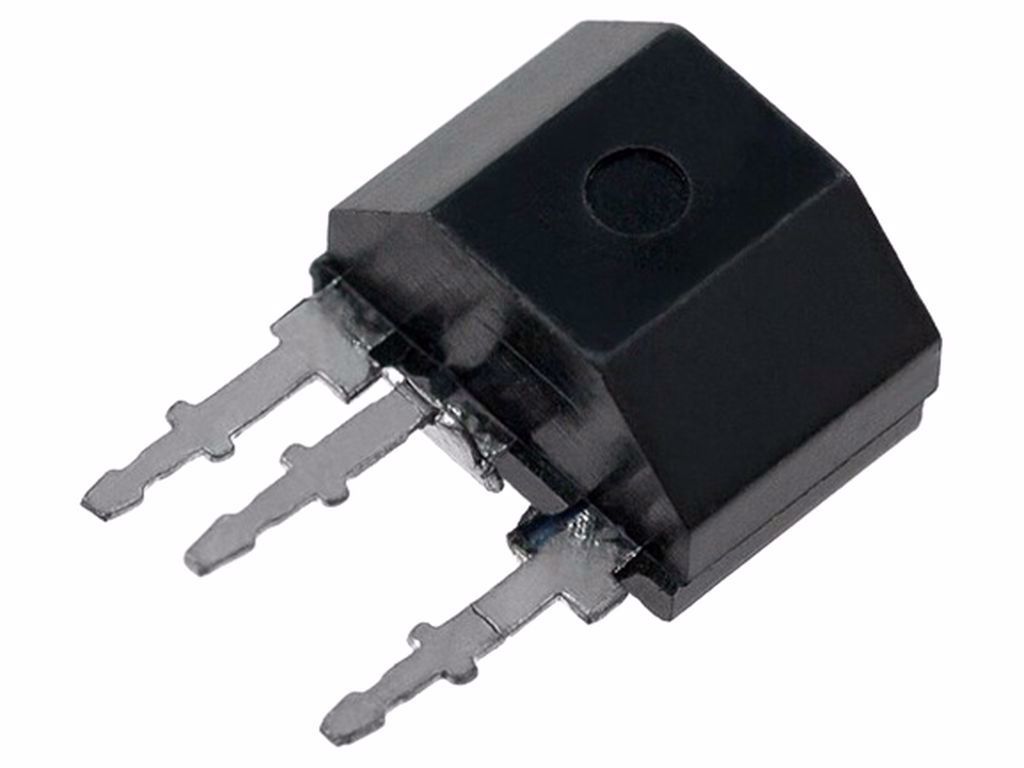

BF197 SOT-25 25MA 40V 0.25W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
57 Adet
Fiyat
0,06 USD + KDV
*0,23 TL den başlayan taksitlerle!
2,48 TL
BF197 SOT-25 25MA 40V 0.25W NPN TRANSISTOR
BF197
Type Designator: BF197
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.25 W
Maximum Collector-Base Voltage |Vcb|: 40 V
Maximum Collector-Emitter Voltage |Vce|: 20 V
Maximum Emitter-Base Voltage |Veb|: 4 V
Maximum Collector Current |Ic max|: 0.025 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 275 MHz
Collector Capacitance (Cc): 0.3 pF
Forward Current Transfer Ratio (hFE), MIN: 38
Package: X09
Bu ürüne ilk yorumu siz yapın!
