BDX88 TO-3 12A 45V 117W PNP DARLINGTON TRANSISTOR
0 - Yorum
0,00 TL
BDX88 TO-3 12A 45V 117W PNP TRANSISTOR
BDX88
Type Designator: BDX88
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 117 W
Maximum Collector-Base Voltage |Vcb|: 45 V
Maximum Collector-Emitter Voltage |Vce|: 45 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 12 A
Max. Operating Junction Temperature (Tj): 200 °C
Transition Frequency (ft): 35 MHz
Forward Current Transfer Ratio (hFE), MIN: 750

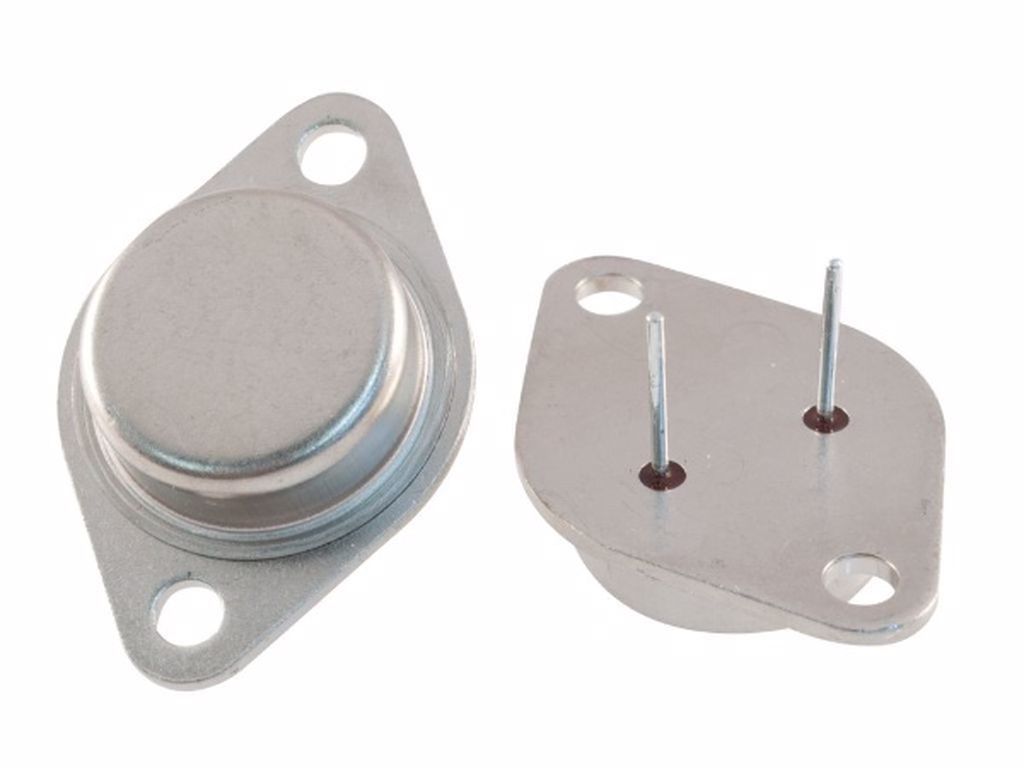

Package: TO3
