BDX85 TO-3 15A 45V 100W NPN DARLINGTON TRANSISTOR
BDX85
Type Designator: BDX85
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 100 W
Maximum Collector-Base Voltage |Vcb|: 45 V
Maximum Collector-Emitter Voltage |Vce|: 45 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 15 A
Max. Operating Junction Temperature (Tj): 200 °C
Transition Frequency (ft): 4 MHz
Forward Current Transfer Ratio (hFE), MIN: 750

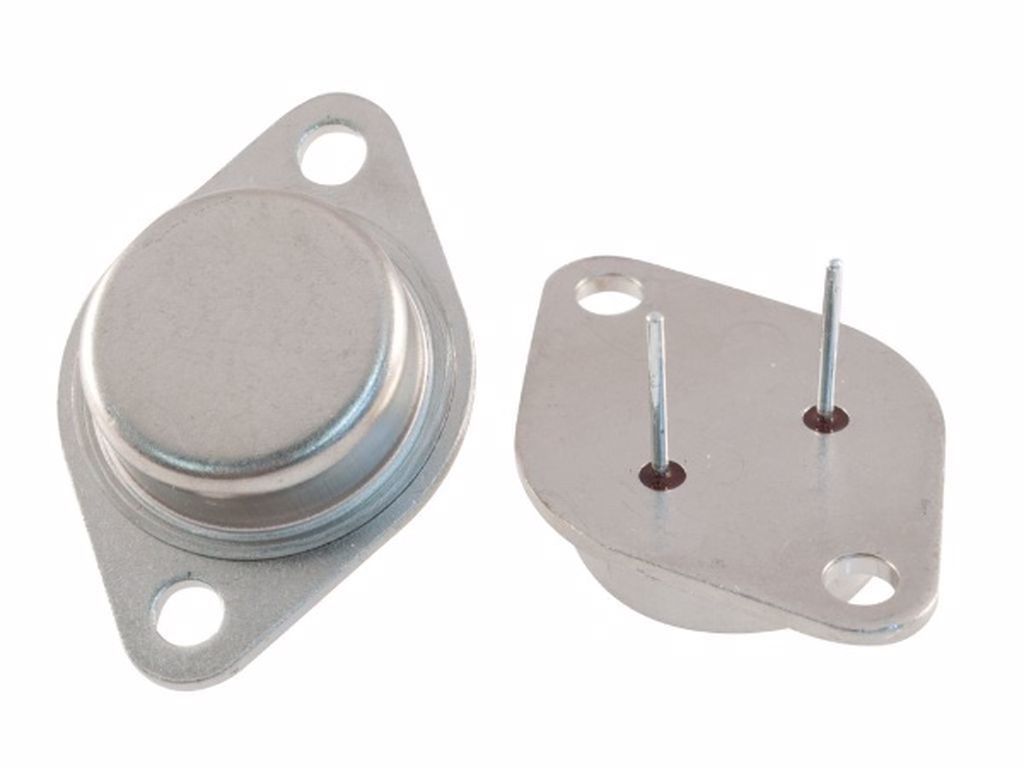

Package: TO3
