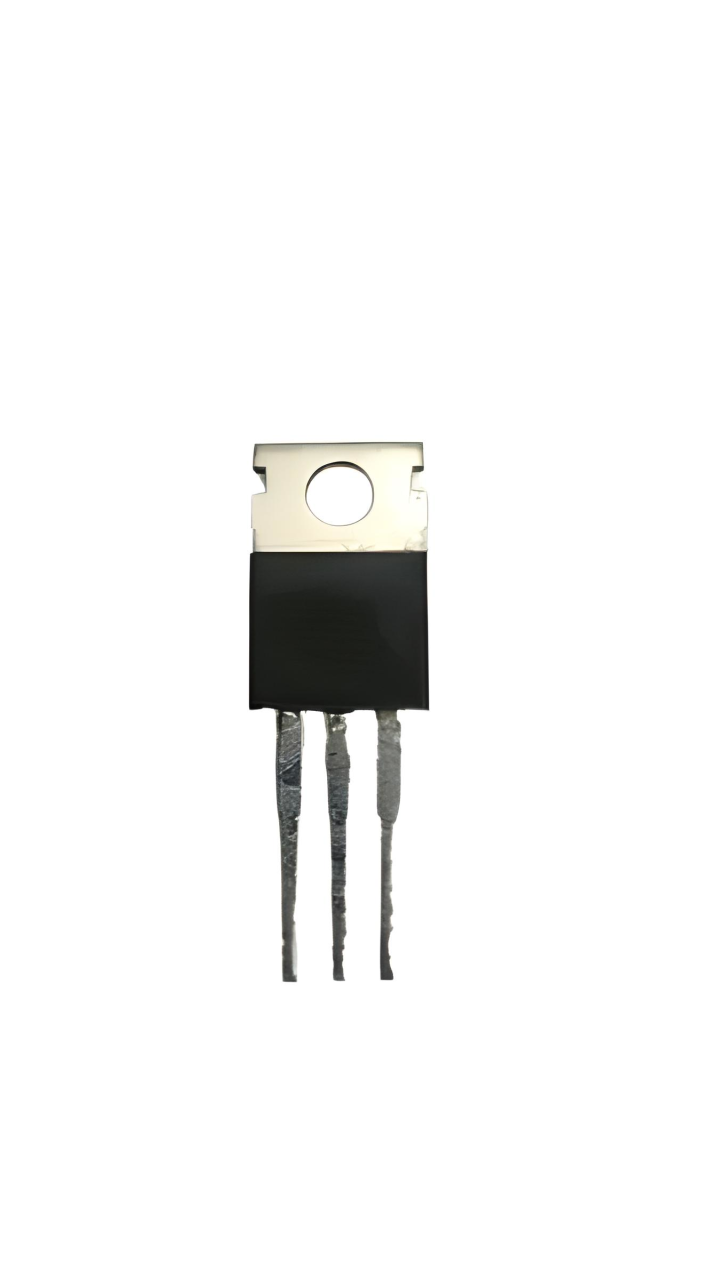

BDX72 TO-220 10A 80V 75W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
6 Adet
Fiyat
0,55 USD + KDV
*2,12 TL den başlayan taksitlerle!
22,78 TL
BDX72 TO-220 10A 80V 75W NPN TRANSISTOR
BDX72
Type Designator: BDX72
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 75 W
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector-Emitter Voltage |Vce|: 70 V
Maximum Emitter-Base Voltage |Veb|: 8 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 0.8 MHz
Forward Current Transfer Ratio (hFE), MIN: 20
Noise Figure, dB: -
Bu ürüne ilk yorumu siz yapın!
