BDX65C TO-3 16A 140V NPN DARLINGTON POWER TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
0 Adet
Fiyat
1,75 USD + KDV
*6,74 TL den başlayan taksitlerle!
72,47 TL
BDX65C TO-3 16A 140V NPN DARLINGTON POWER TRANSISTOR
BDX65C
Type Designator: BDX65C
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 117 W
Maximum Collector-Base Voltage |Vcb|: 140 V
Maximum Collector-Emitter Voltage |Vce|: 120 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 16 A
Max. Operating Junction Temperature (Tj): 200 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN: 2000

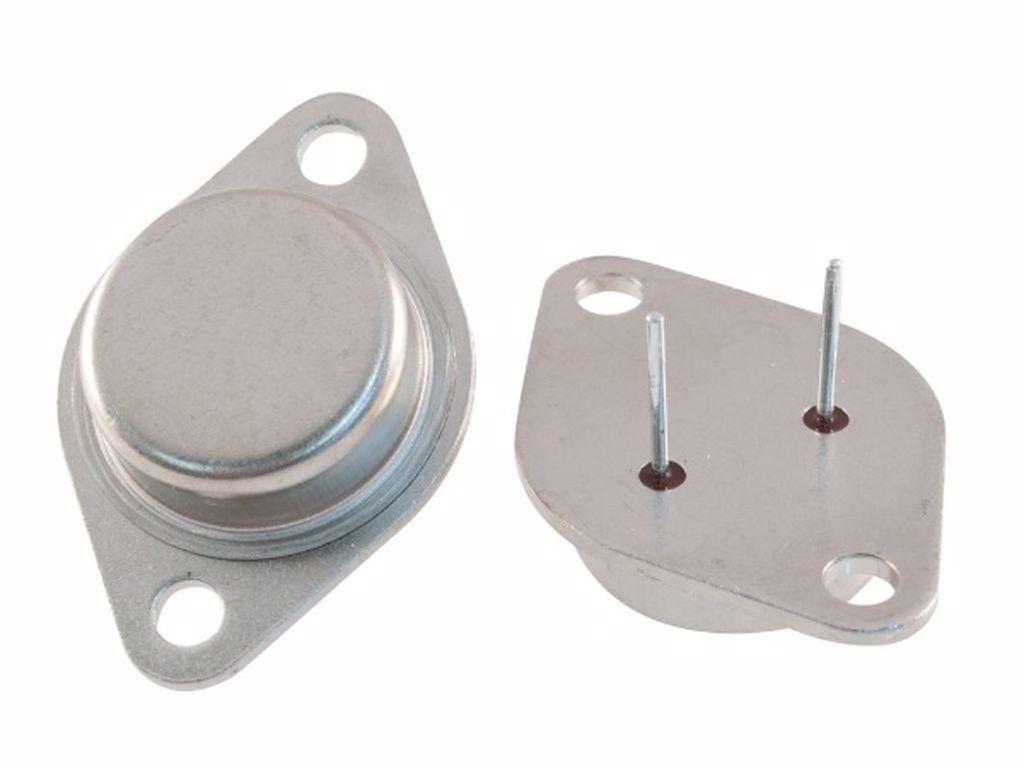

Package: TO3
