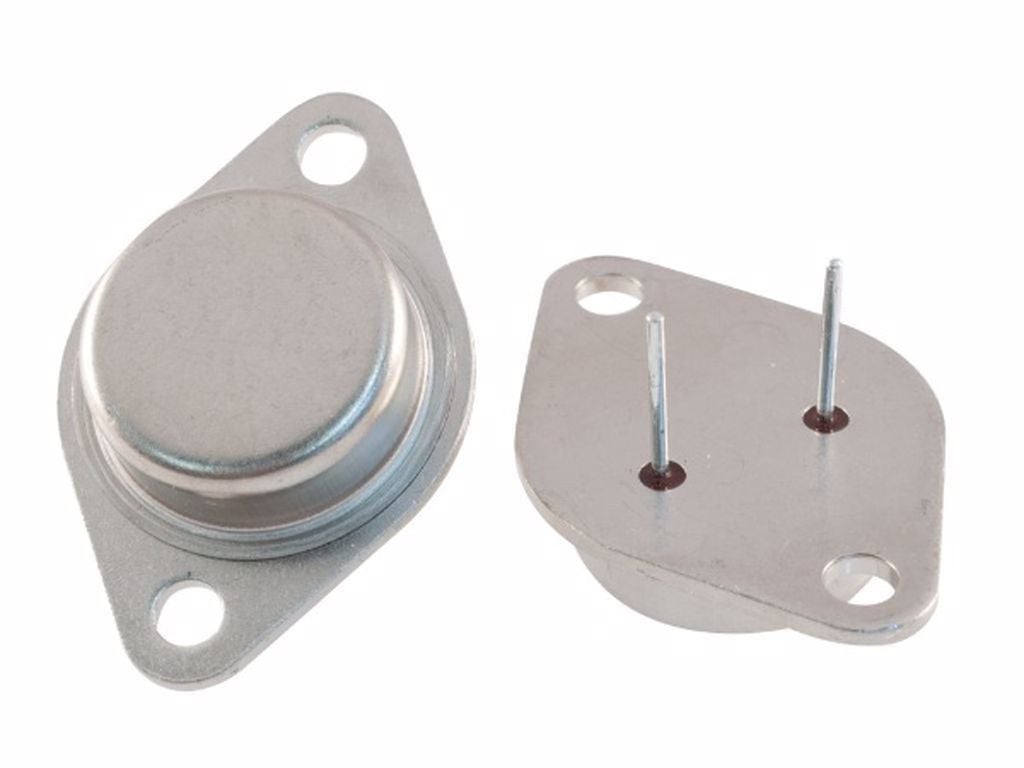

BDX20 TO-3 160V 10A PNP TRANSİSTÖR
0 - Yorum
Kategori
Kalan Adet
0 Adet
Fiyat
2,50 USD + KDV
*9,63 TL den başlayan taksitlerle!
103,53 TL
BDX20
Type Designator: BDX20
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 117 W
Maximum Collector-Base Voltage |Vcb|: 160 V
Maximum Collector-Emitter Voltage |Vce|: 140 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 200 °C
Transition Frequency (ft): 4 MHz
Forward Current Transfer Ratio (hFE), MIN: 60
Package: TO3
