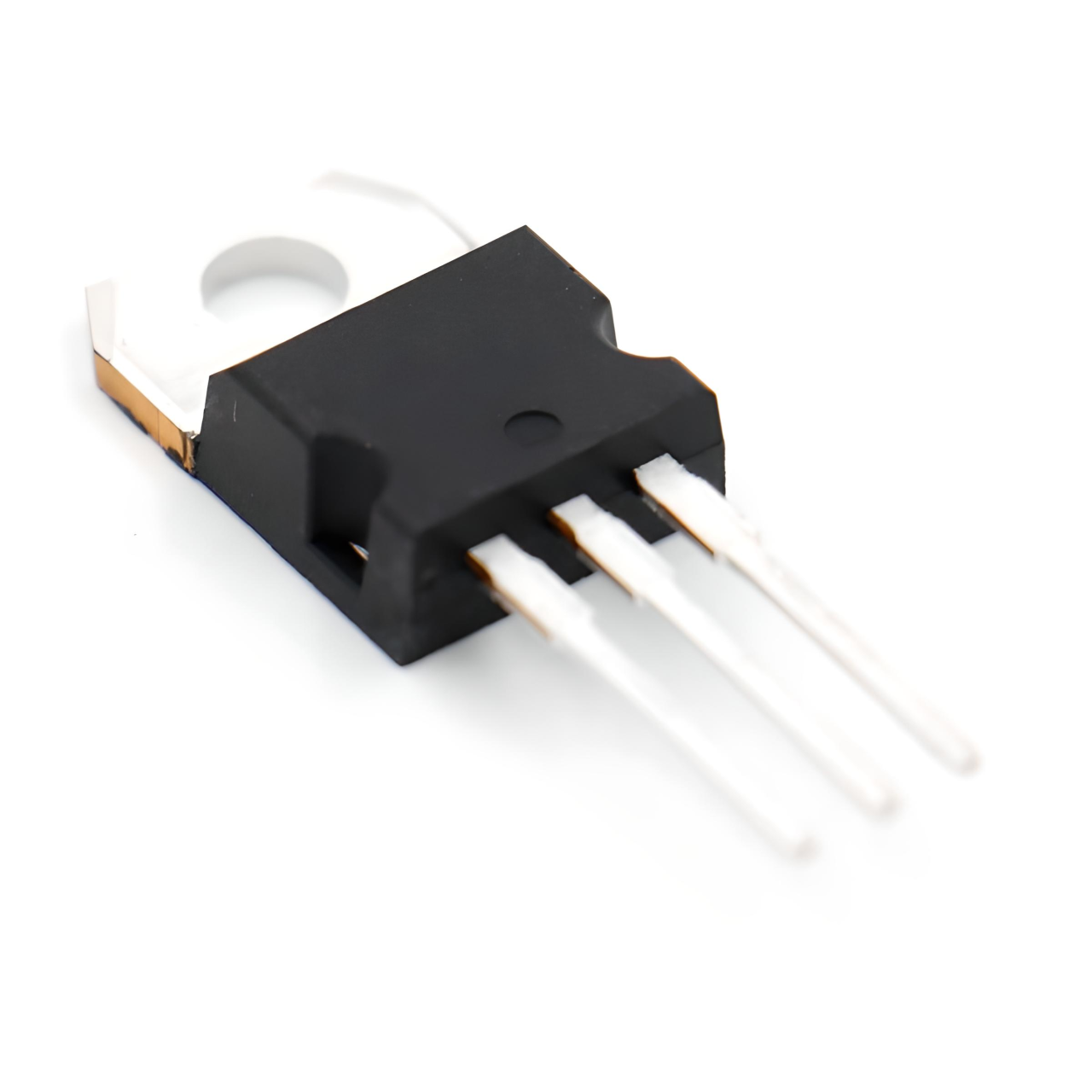

BDW93C TO-220 12A 100V 33W NPN DARLINGTON TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
1976 Adet
Fiyat
0,36 USD + KDV
*1,39 TL den başlayan taksitlerle!
14,91 TL
BDW93C TO-220 12A 100V 33W NPN DARLINGTON TRANSISTOR
BDW93C
Type Designator: BDW93C
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 80 W
Maximum Collector-Base Voltage |Vcb|: 100 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 12 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 20 MHz
Forward Current Transfer Ratio (hFE), MIN: 15000
Package: TO220
