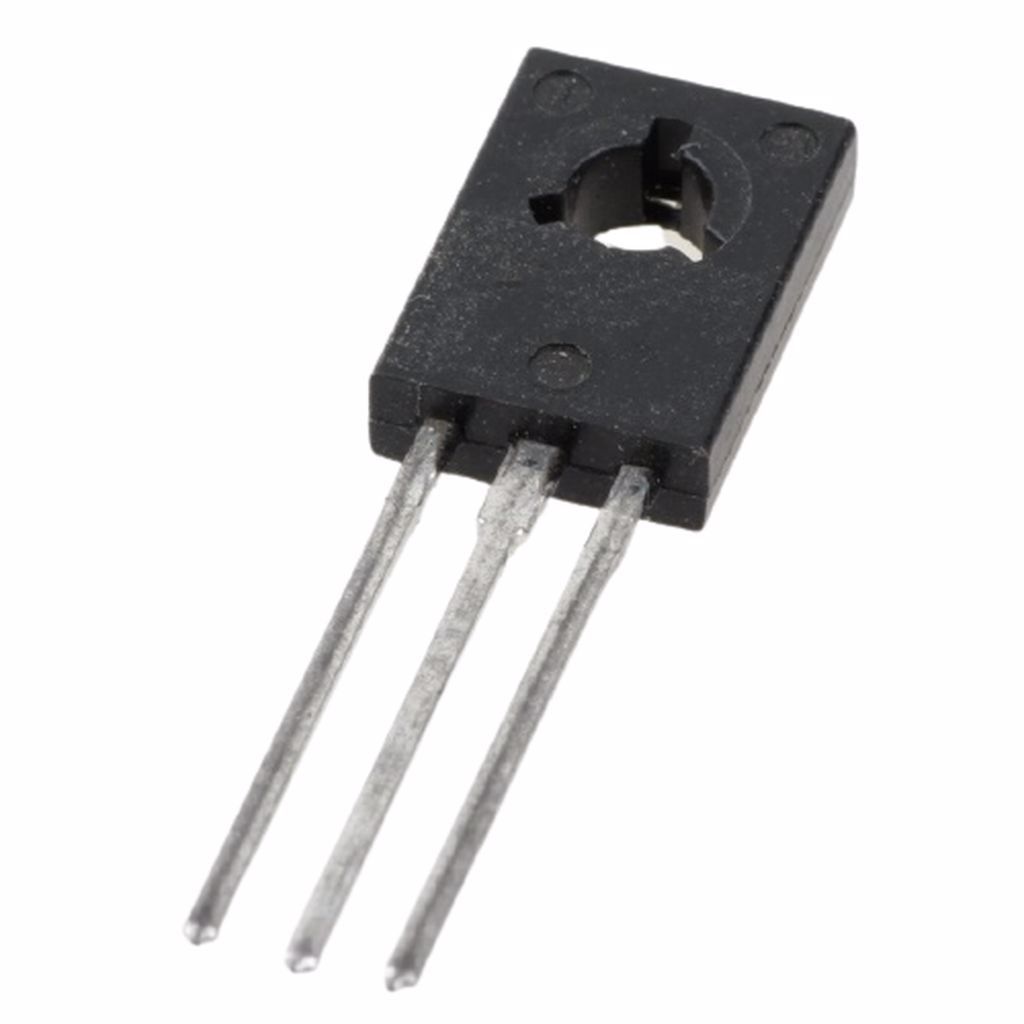

BD435 TO-126 4A 32V 36W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
997 Adet
Fiyat
0,32 USD + KDV
*1,23 TL den başlayan taksitlerle!
13,21 TL
BD435 TO-126 4A 32V 36W NPN TRANSISTOR
BD435
Type Designator: BD435
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 36 W
Maximum Collector-Base Voltage |Vcb|: 32 V
Maximum Collector-Emitter Voltage |Vce|: 32 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 4 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN: 50
Package: TO126
