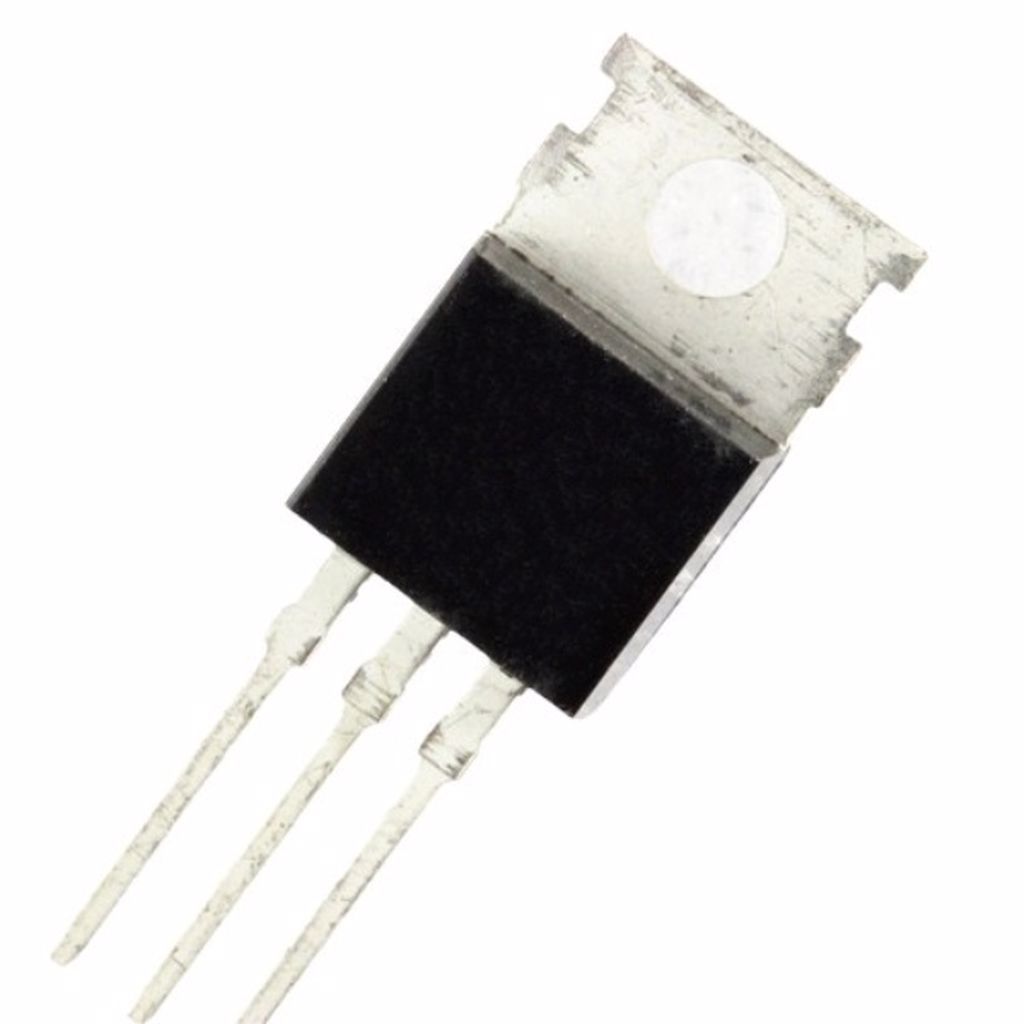

BD241C TO-220 3A 100V 40W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
0 Adet
Fiyat
0,35 USD + KDV
*1,35 TL den başlayan taksitlerle!
14,49 TL
BD241C TO-220 3A 100V 40W PNP TRANSISTOR
BD241C
Type Designator: BD241C
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 40 W
Maximum Collector-Base Voltage |Vcb|: 115 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 3 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN: 25
Package: TO220
