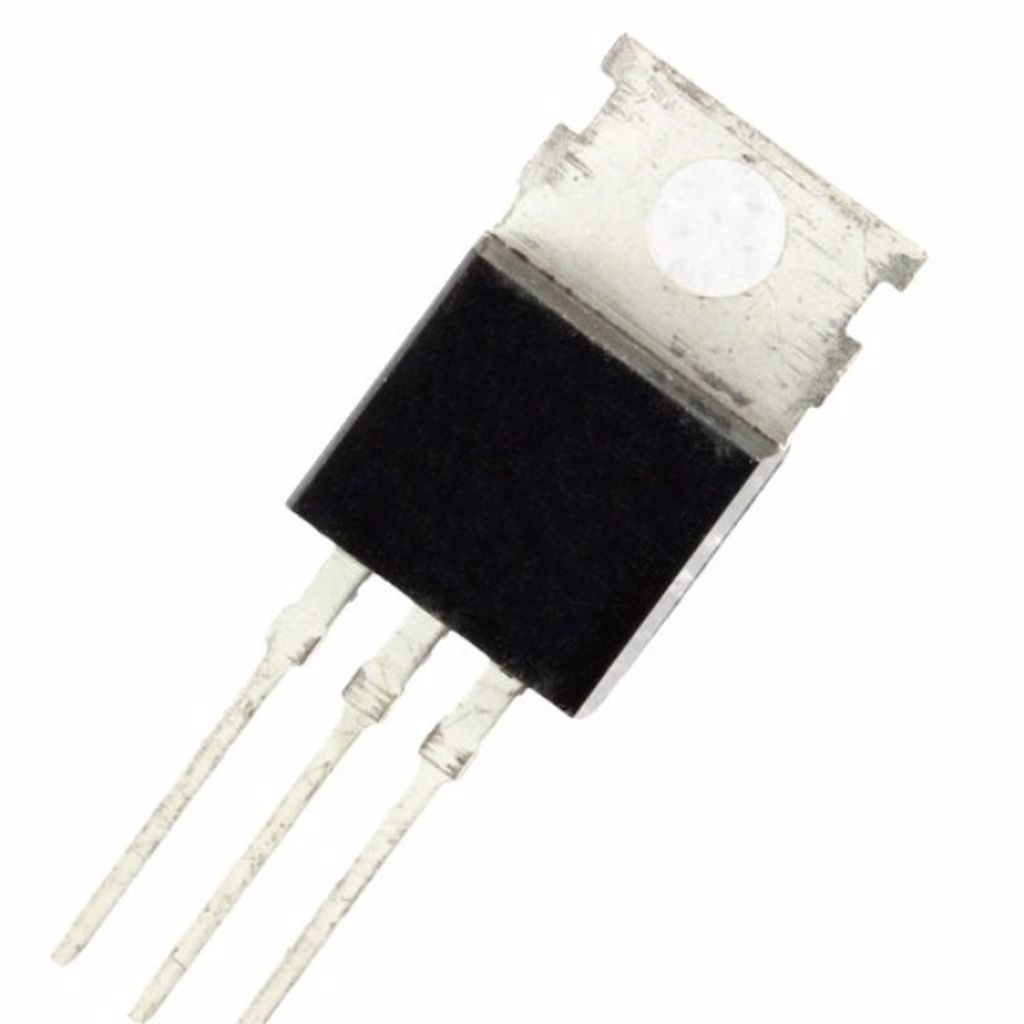

BD240CTU TO-220 2A 100V 30W PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
150 Adet
Fiyat
0,52 USD + KDV
*2,00 TL den başlayan taksitlerle!
21,46 TL
BD240CTU TO-220 2A 100V 30W PNP TRANSISTOR
BD240C
Type Designator: BD240C
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 30 W
Maximum Collector-Base Voltage |Vcb|: 115 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN: 15
Package: TO220
