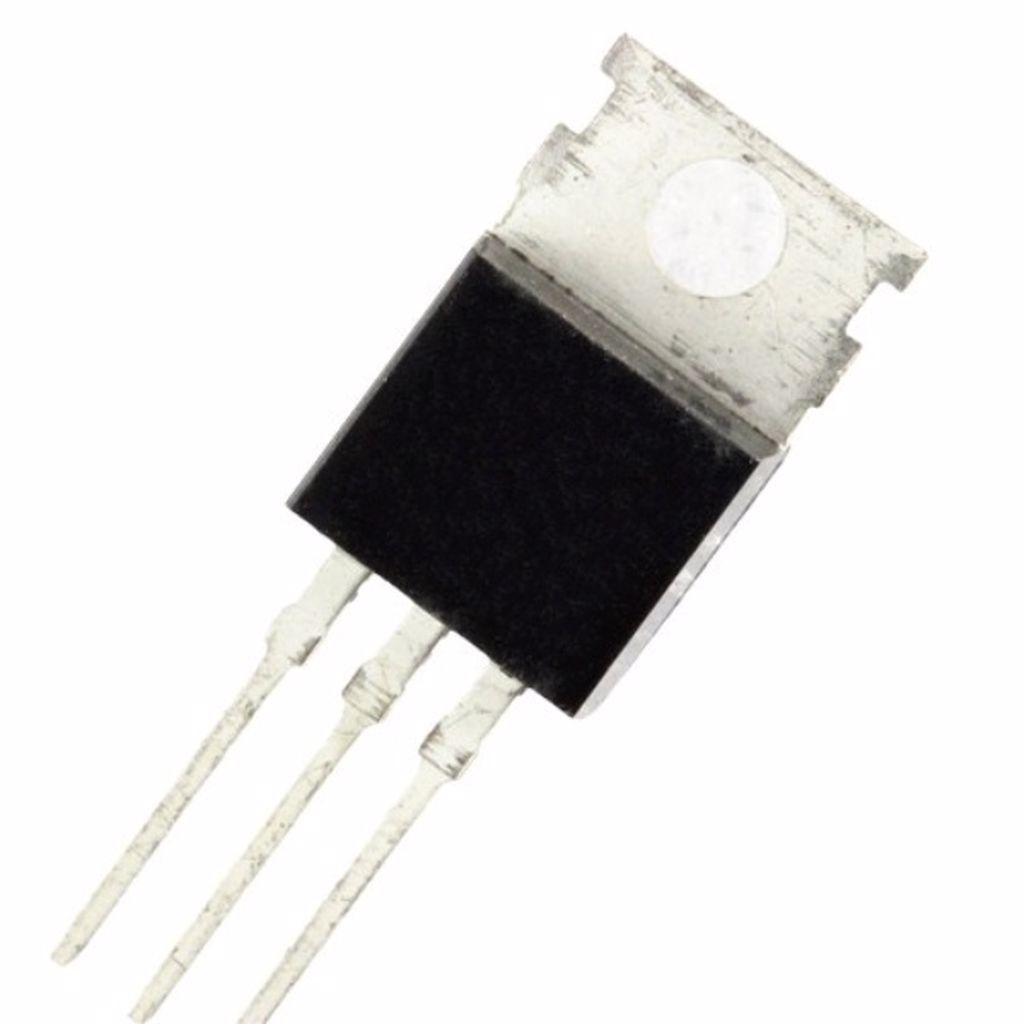

BD239C TO-220 2A 100V 30W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
299 Adet
Fiyat
0,39 USD + KDV
*1,50 TL den başlayan taksitlerle!
16,10 TL
BD239C TO-220 2A 100V 30W NPN TRANSISTOR
BD239C
Type Designator: BD239C
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 30 W
Maximum Collector-Base Voltage |Vcb|: 115 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN: 15
Package: TO220
Bu ürüne ilk yorumu siz yapın!
