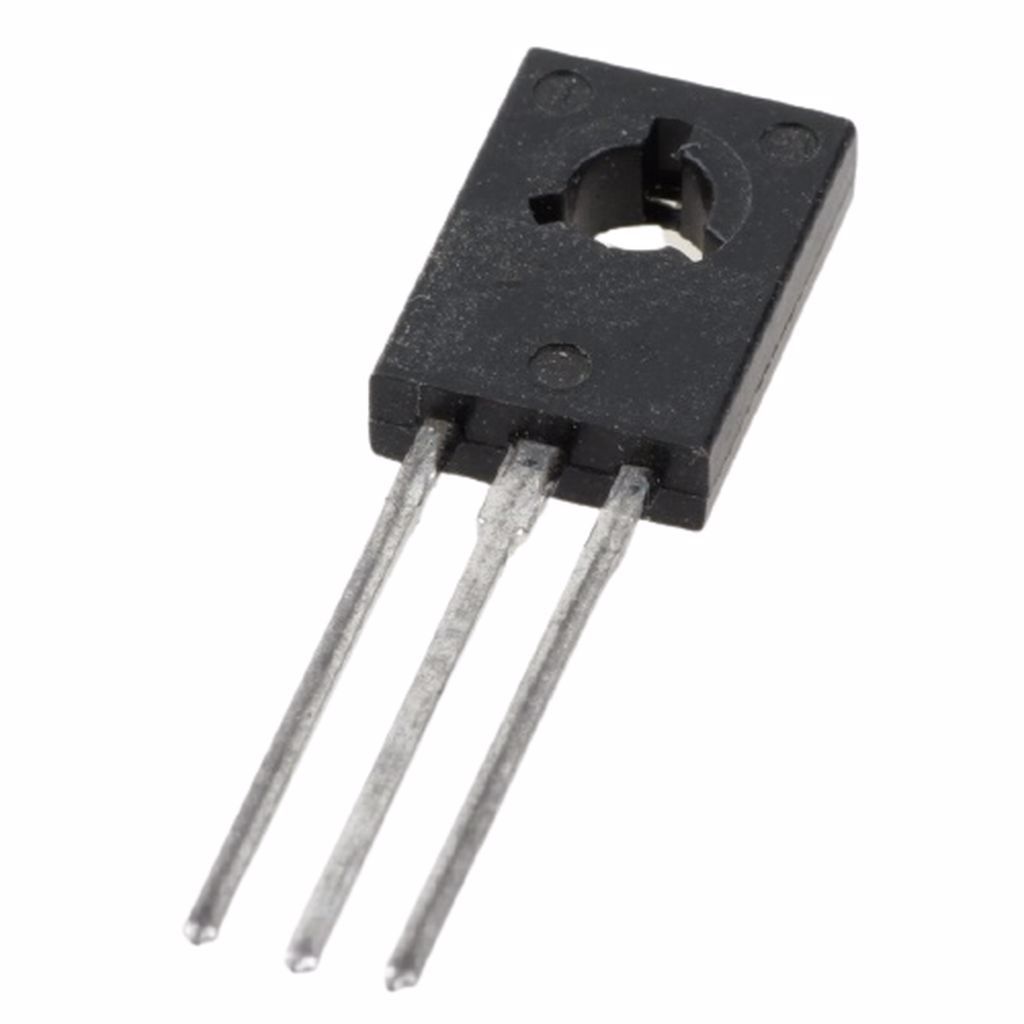

BD238 TO-126 2A 100V 25W PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
70 Adet
Fiyat
0,30 USD + KDV
*1,15 TL den başlayan taksitlerle!
12,38 TL
BD238 TO-126 2A 100V 25W PNP TRANSISTOR
BD238
Type Designator: BD238
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 25 W
Maximum Collector-Base Voltage |Vcb|: 100 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN: 25
Package: TO126
