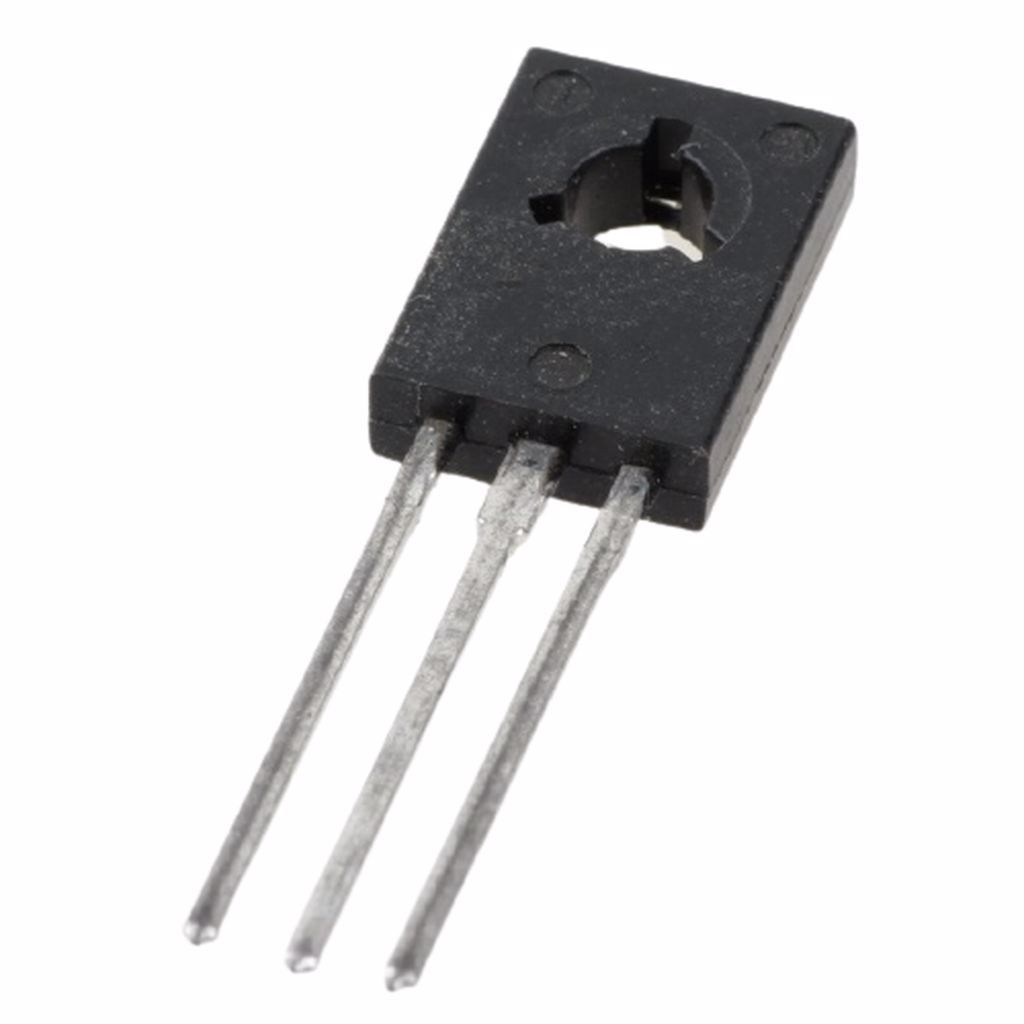

BD237 TO-126 2A 100V 25W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
1000 Adet
Fiyat
0,24 USD + KDV
*0,92 TL den başlayan taksitlerle!
9,91 TL
BD237 TO-126 2A 100V 25W NPN TRANSISTOR
BD237
Type Designator: BD237
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 25 W
Maximum Collector-Base Voltage |Vcb|: 100 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN: 25
Package: TO126
