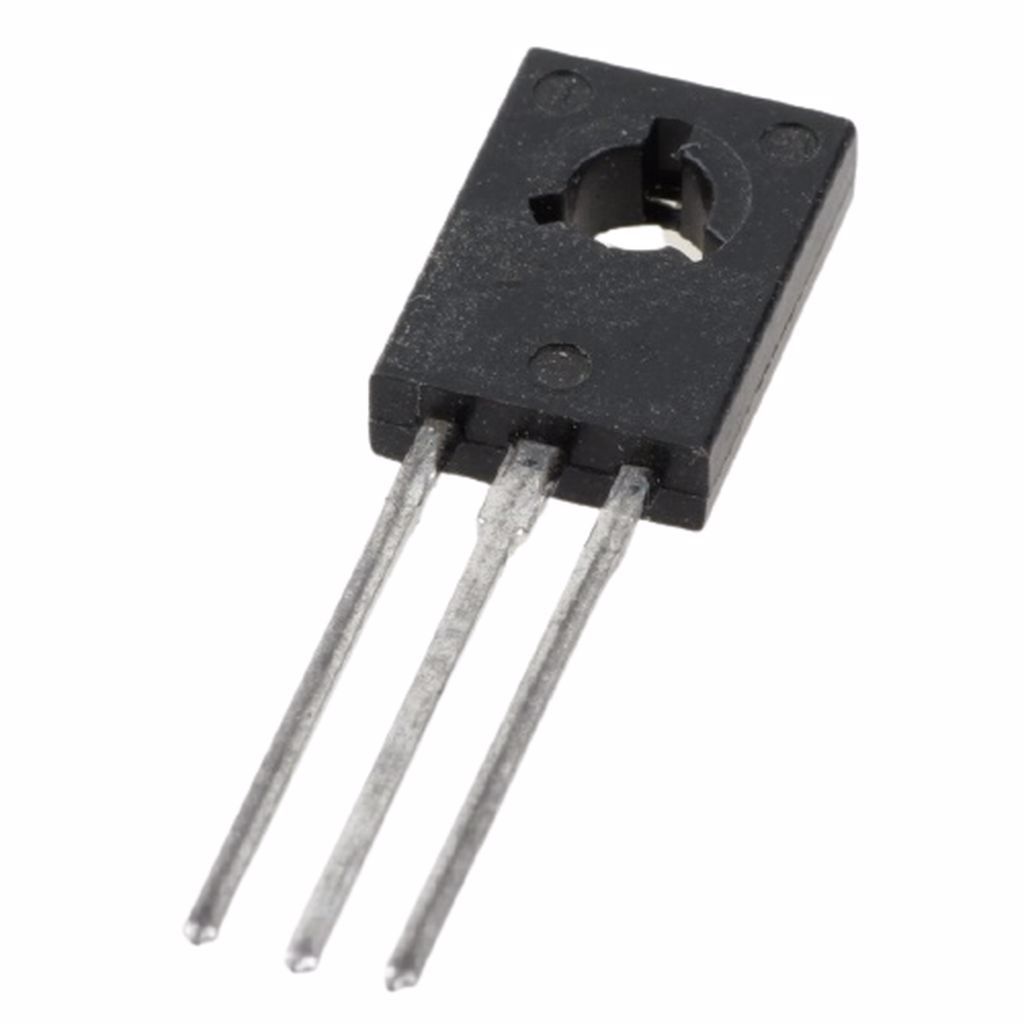

BD236 TO-126 2A 60V 25W PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
130 Adet
Fiyat
0,38 USD + KDV
*1,46 TL den başlayan taksitlerle!
15,68 TL
BD236 TO-126 2A 60V 25W PNP TRANSISTOR
BD236
Type Designator: BD236
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 25 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 60 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN: 25
Package: TO126
