BD235 TO-126 2A 60V 25W NPN TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
54 Adet
Fiyat
0,39 USD + KDV
*1,50 TL den başlayan taksitlerle!
16,10 TL

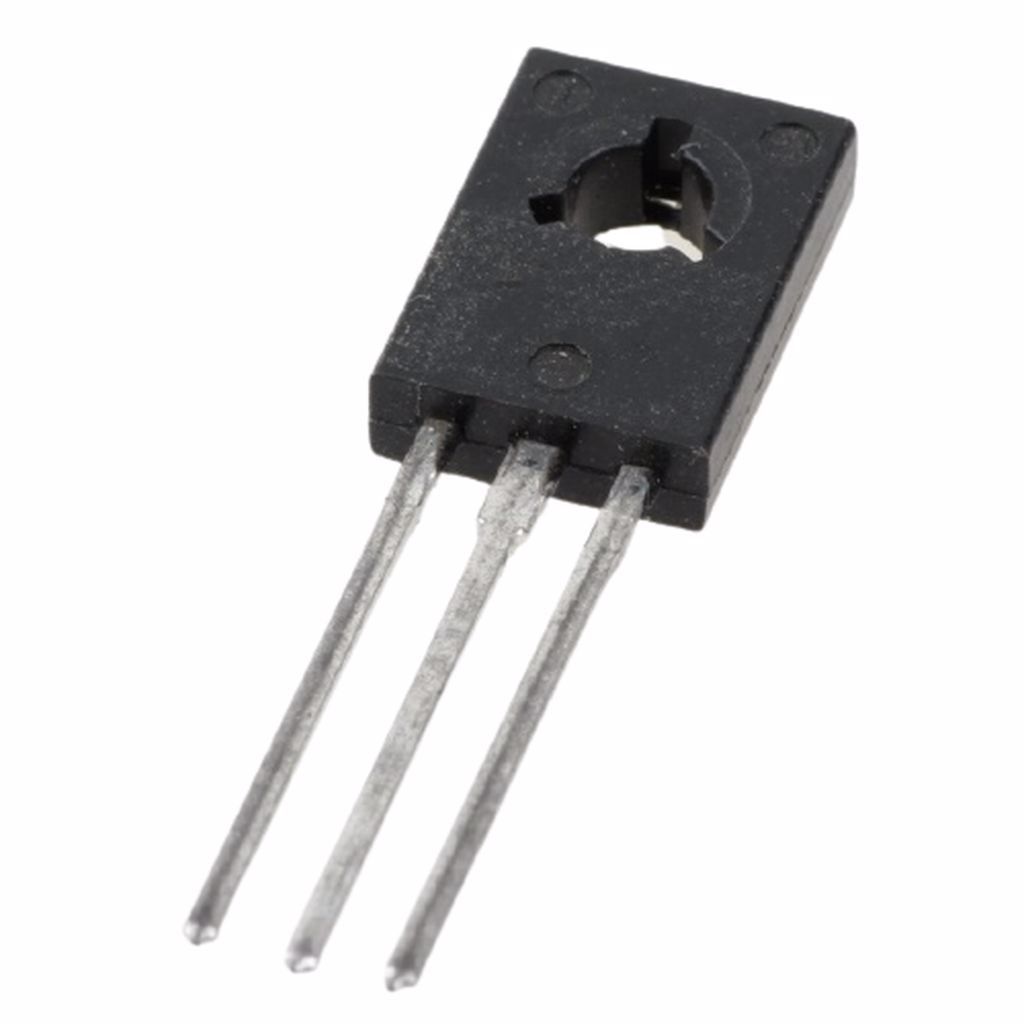

BD235 TO-126 2A 60V 25W NPN TRANSISTOR
BD235
Type Designator: BD235
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 25 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 60 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN: 25
Package: TO126
Bu ürüne ilk yorumu siz yapın!
