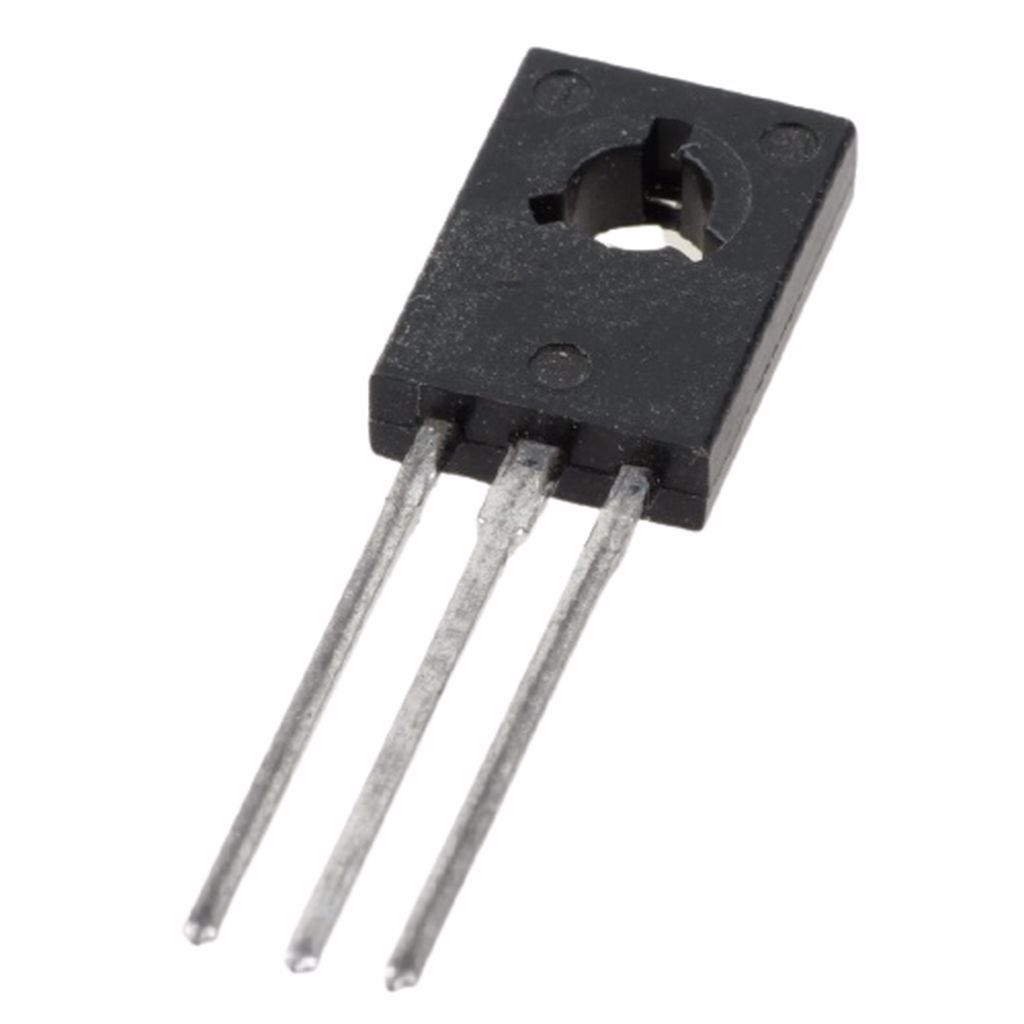

BD234 TO-126 45V 2A PNP TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
2 Adet
Fiyat
0,39 USD + KDV
*1,50 TL den başlayan taksitlerle!
16,08 TL
BD234
Type Designator: BD234
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 25 W
Maximum Collector-Base Voltage |Vcb|: 45 V
Maximum Collector-Emitter Voltage |Vce|: 45 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN: 25
Package: TO126
