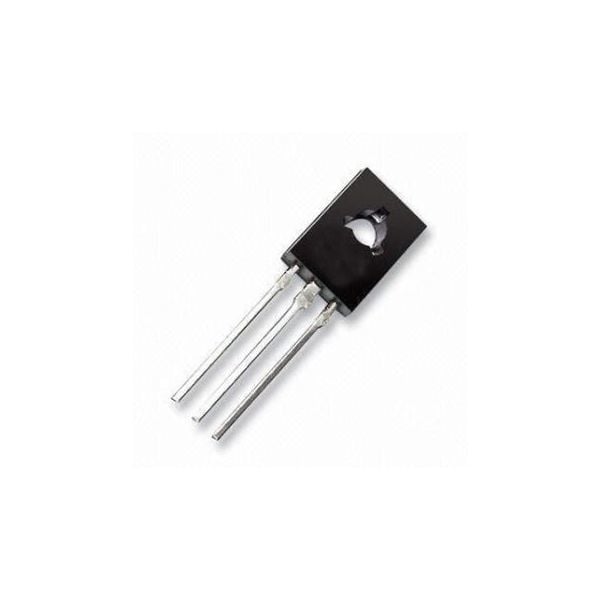

BD140 TO-126 1.5A 80V 1.25W NPN TRANSİSTÖR
0 - Yorum
Kategori
Kalan Adet
16238 Adet
Fiyat
0,25 USD + KDV
*0,96 TL den başlayan taksitlerle!
10,35 TL
BD140
Type Designator: BD140
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 12 W
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN: 40
Package: TO126
Bu ürüne ilk yorumu siz yapın!
