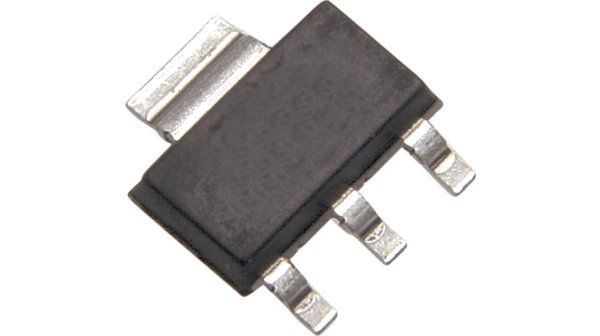

BCP68 SOT-223 20V 1A NPN TRANSİSTÖR
0 - Yorum
Kategori
Kalan Adet
33 Adet
Fiyat
0,75 USD + KDV
*2,88 TL den başlayan taksitlerle!
30,93 TL
BCP68
Type Designator: BCP68
SMD Transistor Code: CA
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 1.5 W
Maximum Collector-Base Voltage |Vcb|: 25 V
Maximum Collector-Emitter Voltage |Vce|: 25 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN: 40
Package: SOT223
Bu ürüne ilk yorumu siz yapın!
