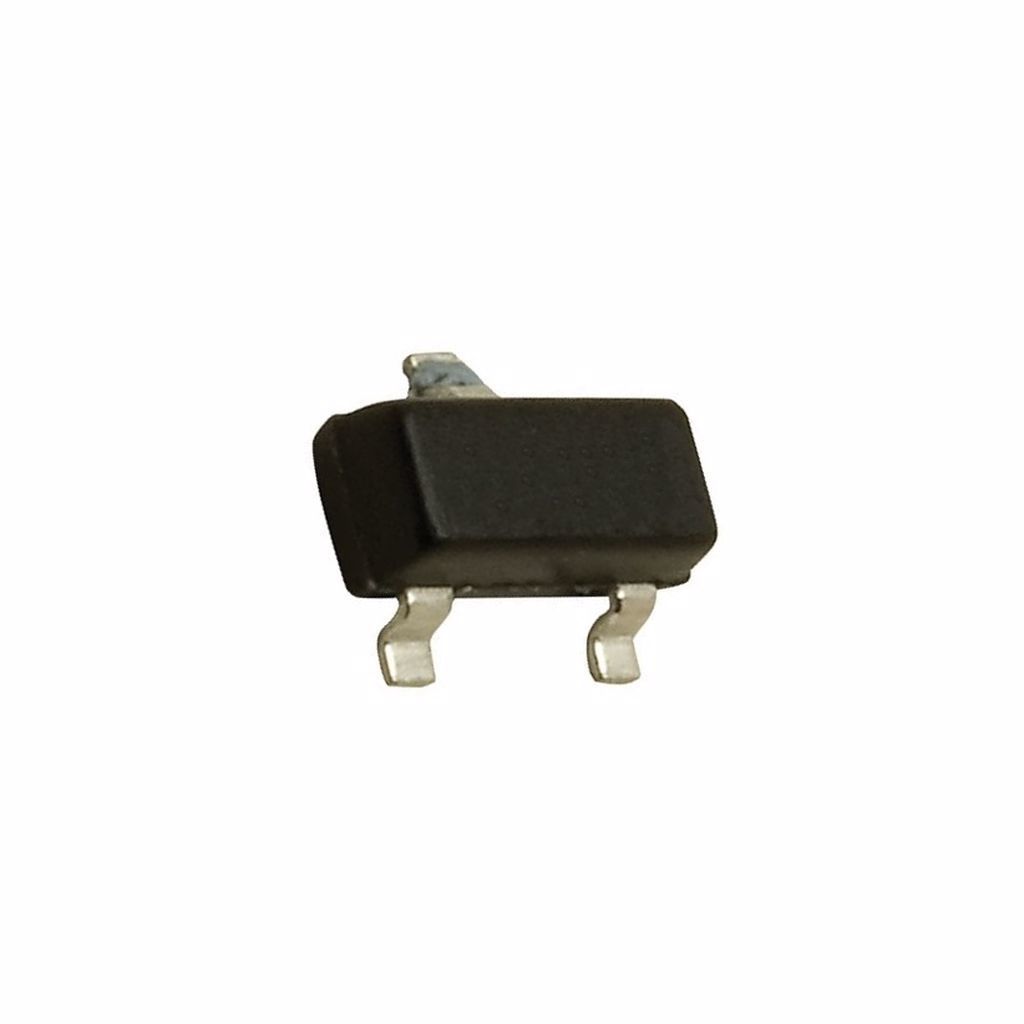

BC858C SOT-23 0.1A 30V 0.2W PNP TRANSISTOR
0 - Yorum
0,00 TL
BC858C SOT-23 0.1A 30V 0.2W PNP TRANSISTOR
BC858C
Type Designator: AD-BC858-C
SMD Transistor Code: 3L
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.2 W
Maximum Collector-Base Voltage |Vcb|: 30 V
Maximum Collector-Emitter Voltage |Vce|: 30 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 100 MHz
Collector Capacitance (Cc): 4.5 pF
Forward Current Transfer Ratio (hFE), MIN: 420
Package: SOT23
